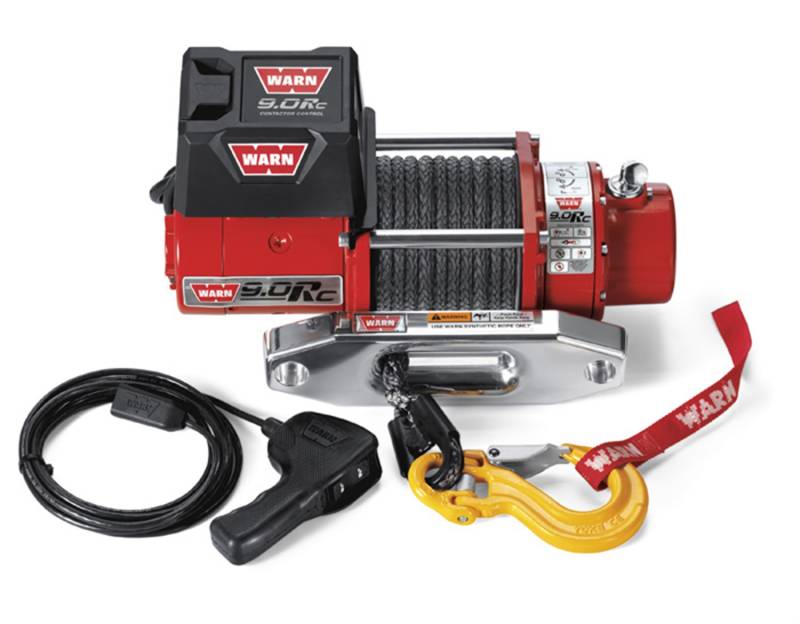

Warn 9.0Rc Compact Rock Crawling Winch - 71550

Warn Winch - Rock Crawler 9000 LB - 50 Ft Synthetic Rope Hawse Fairlead

71550
WARN 9.0Rc
A compact, lightweight winch for rock sports



Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.

4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
Next-generation control pack delivers long duty cycles
New-style remote control
50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
Aluminum hawse fairlead
Exclusive multi-segment cam actuated brake for positive operator control during winching
Gloss red paint with primer undercoat gives superior corrosion resistance
Pricing: $2,289.99
Qty:
Free Shipping!

Description

WARN 9.0Rc
A compact, lightweight winch for rock sports

9.0Rc SPECS/PART NUMBER
Winch Model: WARN 9.0Rc
Part Number: 71550
Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone brake
Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)
Weight: 54 lbs. (24.8kgs.)
Rope: 50 ft, 3/8 in (15m, 9.5mm) Spydura? synthetic Rope
Fairlead: Matte aluminum Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Gloss red paint over primer undercoating

Product Series

Manufacturer

Warn Industries is the world's most recognized brand in off-road products. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles and ATVs. As well, the WARN Industrial and WARN Works (for utilitarian use) brands offer high-performance, quality products for today's hard worker.
