Fabtech K1014M Performance Lift System w/Shocks
6" PERF SYSTEM W/STEALTH 01-10 GM C/K2500HD, C/K3500 NON DUALLY

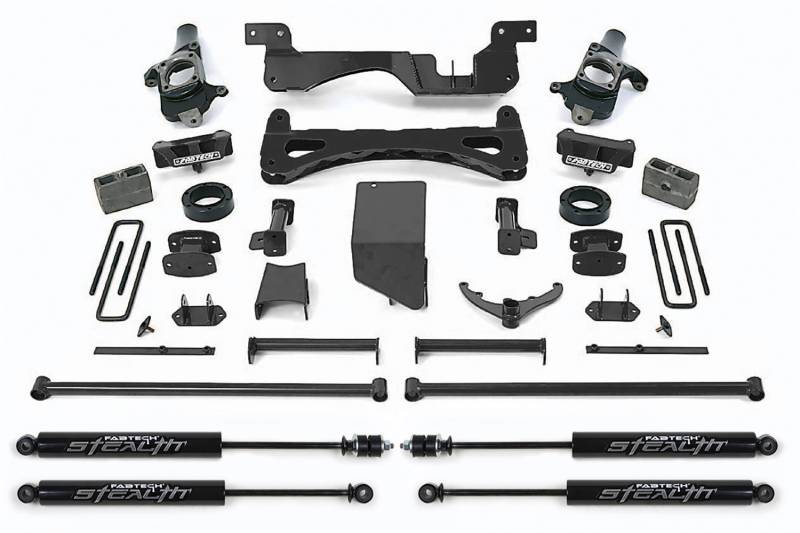

Our 6? system for 2001-10 GM HD's has been designed to provide superior suspension performance for daily driving or for offroad. This is accomplished using our proven one piece lower control arm crossmembers and extended length steering knuckles with a multitude of shock absorber options. The 1/4? thick arched lower control arms crossmembers include an integrated front differential skid plate, crossmembers support tubes and rear impact struts to distribute front suspension impact loads through the frame evenly. A new knuckle design was introduced in 2007 with this system that provides reduced track width to keep the tires under the fenders. This system also includes torsion bar drop mounts, extended length sway bar links with urethane bushings, front and rear bump stop brackets, and rear blocks.
- Heavy Duty 1/4 Thick High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Torsion Bar Drop Brackets
- Impact Struts
- Billet Sway Bar End Links
- Rear Block U Bolt Kit
w/Stealth Monotube Shocks - 6 in. Lift
Description
Fabtech - Performance Lift System w/Shocks P/N K1014M Features:
- Heavy Duty 1/4 Thick High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Torsion Bar Drop Brackets
- Impact Struts
- Billet Sway Bar End Links
- Rear Block U Bolt Kit
Product Series
Manufacturer
Fabtech has since grown into a world class manufacturer of Suspension Systems and accessories for the offroad enthusiast. Fabtech operates a 200,000 sq. ft facility in Chino, California performing all phases of R&D and Manufacturing in house.
Suspension designs are created internally and hand crafted by Fabtech's team of Race Shop fabricators and engineers for proper functionality and performance. State of the art CNC Lasers, Mills, Lathes and Welders construct each component for exceptional quality control and superior strength.
Unique designs, extensive testing and superior strength is why Fabtech builds the finest 2 & 4 Wheel Drive Suspension Systems on the market today.
Details
Shipping Information
- Item Requires Shipping
- 276.0 lbs.
- W38.0200” x H22.0000” x L45.5000”
- $79.00
- This item will require a special quote for shipping charges.
- This item is oversize for normal delivery and will incur an additional handling charge. Delivery to a commercial/business address is recommended.
