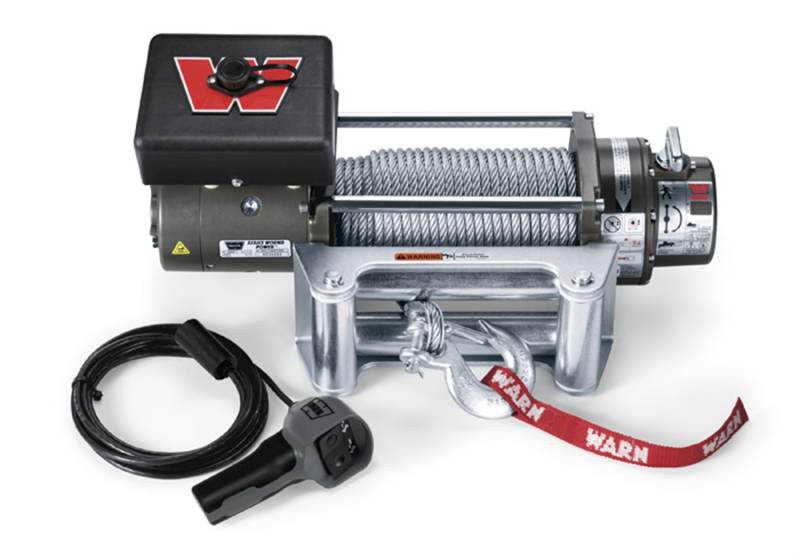

Warn M8000 8,000 lb. Self-Recovery Winch - 26502
Warn Winch - 8000 LB - 100 Ft Wire Rope Roller Fairlead
26502
WARN M8
Compact, tough and reliable
The M8 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.
Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
Contactor control box and hand-held, corded remote control
Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching
Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong
pulls
Chip-resistant powder-coated finish
100' of steel or synthetic rope
Compact, tough and reliable
The M8 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.
Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
Contactor control box and hand-held, corded remote control
Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching
Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong
pulls
Chip-resistant powder-coated finish
100' of steel or synthetic rope
Description
M8 SPECS/PART NUMBERS
Winch model: M8
Part number: 26502 (wire rope, 12V)
Rated line pull: 8,000 lbs., (3630 kgs.) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs)
Rope: Steel -- 100', 5/16" diam. (30m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
Winch model: M8
Part number: 26502 (wire rope, 12V)
Rated line pull: 8,000 lbs., (3630 kgs.) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs)
Rope: Steel -- 100', 5/16" diam. (30m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
