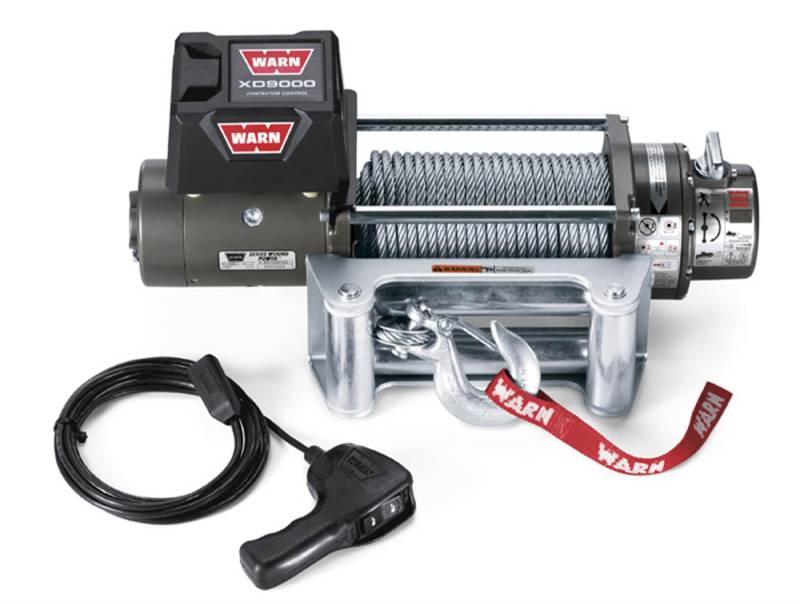

Warn XD9000 9,000 Lb. Self-Recovery Winch - 28500
Warn Winch - 9000 LB - 100 Ft Wire Rope Roller Fairlead Wired Remote
28500
WARN XD9
Long time best selling winch
A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope. Backed by the Warn Limited Lifetime Warranty.
Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching
Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong pulls
Chip-resistant, powder-coated finish
Remote control with 12' (3.7m) lead.
Durable 5/16" (8mm) diameter galvanized steel wire rope.
Long time best selling winch
A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope. Backed by the Warn Limited Lifetime Warranty.
Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching
Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong pulls
Chip-resistant, powder-coated finish
Remote control with 12' (3.7m) lead.
Durable 5/16" (8mm) diameter galvanized steel wire rope.
Description
XD9 SPECS
Part number: 28500 (12V)
Winch model: XD9
Rated line pull: 9,000 lbs., (4080 kgs.) single-line
Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear Train: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 78 lbs. (35kgs.)
Wire rope: 100', 5/16" dia. (30m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
Part number: 28500 (12V)
Winch model: XD9
Rated line pull: 9,000 lbs., (4080 kgs.) single-line
Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear Train: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 78 lbs. (35kgs.)
Wire rope: 100', 5/16" dia. (30m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
