TeraFlex JK Small Rear Upper Offset FlexArm Joint - Right Hand Thread
4116220

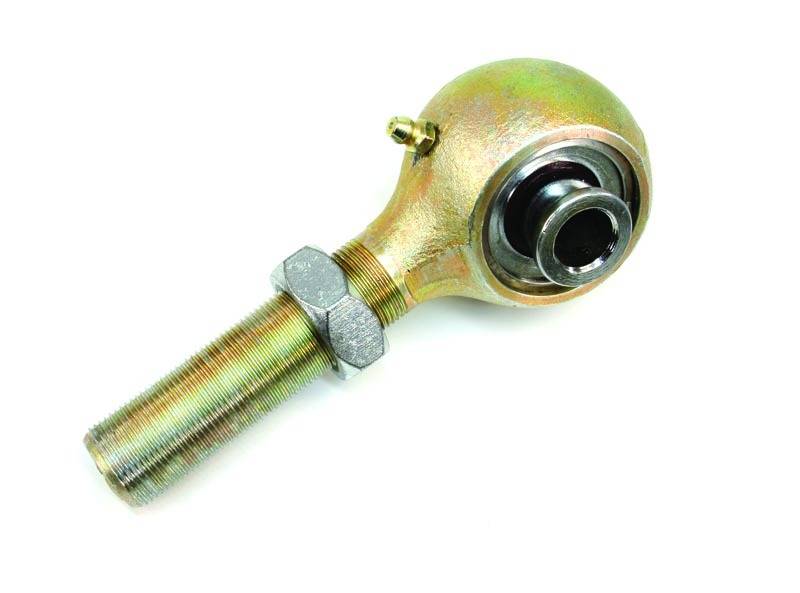

The TeraFlex JK small offset FlexArm Joint provides excellent off-road capabilities with articulation and durability. The chrome plated ball provides extreme corrosion resistance and incorporates a smooth sliding surface to reduce bushing friction and heat buildup and extend maximum bushing life. Increased shoulder width provides secure mounting. The urethane bushing uses interlocking fingers to provide a flow-through grease channel for proper lubrication to maximize bushing life. Vibration damping polyurethane material reduces road noise, eliminates clunks, and keeps proper position for maximum articulation during travel. The high strength forged housing is CNC machined to exacting tolerances for ultimate performance and durability. Zinc plating will ensure that these tolerances are maintained and preserved for the life of the rod end. This FlexArm joint utilizes an offset 9 degree angled 7/8" x 18 tpi. shank and accepts a 7/16" bolt.
Pricing:
$92.99
Description
The TeraFlex threaded insert sleeves make custom link building simple and easy. Weldable inserts are available to fit our large (1-1/4" 12 tpi.), or small (7/8" 18 tpi.) Monster ends. The large inserts require a minimum of 1.5" ID tubing and the medium/small inserts require a minimum of 1-1/8" ID tubing. Sold individually.
Product Series
Details
Shipping Information
- Item Requires Shipping
- 1.9 lbs.
- W3.0000” x H2.5000” x L6.0000”
- Free Shipping!
