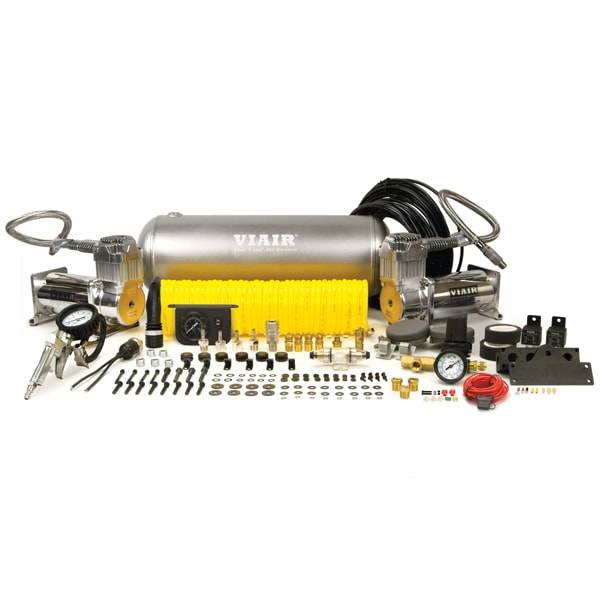

Viair Complete On-Board Air System Dual CHROME 400C + 2 Gallon Tank
VIA-20015
VIAIR’s Dual 400C Onboard Air System is a pre-packaged compressed air solution that provides two 400C, 33% duty cycle compressors, a 2.0 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
SPECIFICATIONS:
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 59 Amps
– Ingress Protection Rating: IP67
SPECIFICATIONS:
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 59 Amps
– Ingress Protection Rating: IP67
Description
FEATURES:
– 2.0 Gallon 150 PSI VIAIR Air Tank
– (2) 400C VIAIR (Chrome) Compressors
– 30ft. Coil Hose with Quick Connects (20015) or
– Tire Inflation Gun with 200 PSI Gauge
– 0-220 PSI Pressure Regulator
– Sealed Pressure Switch (110 PSI on, 145 PSI off)
– 150 PSI Illuminated Dash Panel Gauge
– (2) 40-amp Relays
– Inline Fuse Holder
– 1/4” Quick Connect Coupler (M)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (2) 1/8” BSP to 1/4” NPT
– (3) 1/4” Compression Fittings
– 5 Pc. 1/4” NPT Plugs Kit
– 6-Port Billet Manifold with Mounting Bracket (1/4”)
– (2) 20ft. 1/4” Air Line Included
– Electrical Connections
– 2.0 Gallon 150 PSI VIAIR Air Tank
– (2) 400C VIAIR (Chrome) Compressors
– 30ft. Coil Hose with Quick Connects (20015) or
– Tire Inflation Gun with 200 PSI Gauge
– 0-220 PSI Pressure Regulator
– Sealed Pressure Switch (110 PSI on, 145 PSI off)
– 150 PSI Illuminated Dash Panel Gauge
– (2) 40-amp Relays
– Inline Fuse Holder
– 1/4” Quick Connect Coupler (M)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (2) 1/8” BSP to 1/4” NPT
– (3) 1/4” Compression Fittings
– 5 Pc. 1/4” NPT Plugs Kit
– 6-Port Billet Manifold with Mounting Bracket (1/4”)
– (2) 20ft. 1/4” Air Line Included
– Electrical Connections
Product Series
Application List
Universal
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
