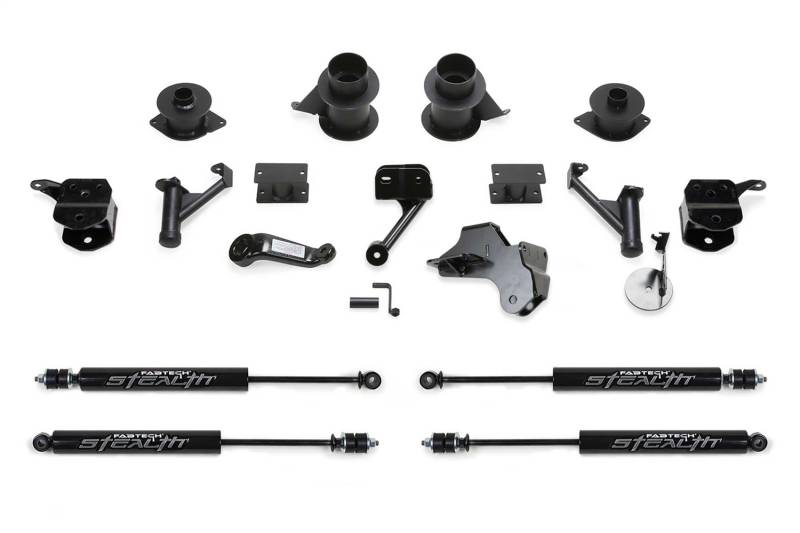

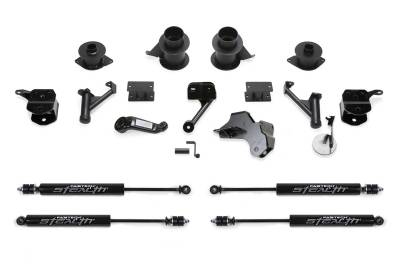

Fabtech K3173M Basic Lift System w/Shocks

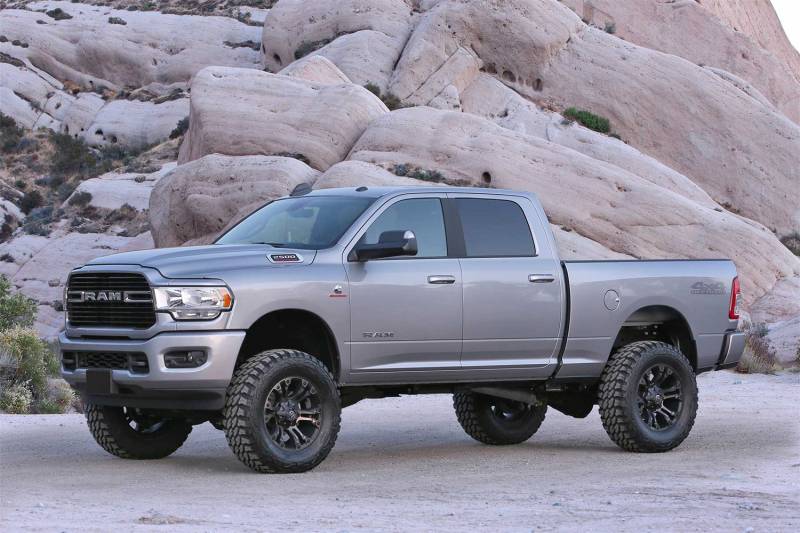

5" BASIC KIT W/STEALTH 2019-20 RAM 2500 4WD

K3173M

This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts. The factory Ram Radius Arms are relocated with heavy duty 1/4 in. thick steel brackets for proper caster with the 5 in. lift. Super stout front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height. The stock coil springs are retained with angular steel spacers to retain the factory front spring bow. This is an important feature with the stock springs as Chrysler designed the bow to aid in their unique alignment specs and ride. Flat spacers do not provide this. The rear coil springs are also retained with steel spacers keeping the weight carrying capacity of the vehicle intact. A Fabtech innovation with this Ram lift kit is the heavy duty steel front bump extensions. They retain the stock bump stop cushions for progressive damping and will not allow the suspension to over travel. This is a superior feature compared to replacement long length urethane bump stops as they can push out under harsh conditions and allow over traveling.

  • Everything You Will Need To Lift Your Vehicle
  • Utilizes The Stock Radius Arm
  • Designed For The Budget Minded Enthusiast

5 in. Lift - w/Stealth

Pricing: $1,705.50
Qty:
Free Shipping!

Description

Fabtech - Basic Lift System w/Shocks P/N K3173M Features:

  • Everything You Will Need To Lift Your Vehicle
  • Utilizes The Stock Radius Arm
  • Designed For The Budget Minded Enthusiast

Product Series

Manufacturer

Established in 1989, Fabtech started as a small custom fabrication shop specializing in building suspensions for Prerunners and Race Trucks.

Fabtech has since grown into a world class manufacturer of Suspension Systems and accessories for the offroad enthusiast. Fabtech operates a 200,000 sq. ft facility in Chino, California performing all phases of R&D and Manufacturing in house.

Suspension designs are created internally and hand crafted by Fabtech's team of Race Shop fabricators and engineers for proper functionality and performance. State of the art CNC Lasers, Mills, Lathes and Welders construct each component for exceptional quality control and superior strength.

Unique designs, extensive testing and superior strength is why Fabtech builds the finest 2 & 4 Wheel Drive Suspension Systems on the market today.

Details

  • K3173M
  • K3173M
  • 674866108714
  • Fabtech
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 113.0 lbs.
  • W23.5200” x H15.6000” x L24.0000”
  • Free Shipping!
  • This item will require a special quote for shipping charges.
