AEV 2013-2018 Ram 1500 4" DualSport Suspension - SC

1500 4" DualSport Suspension - SC - 2013-2018 Ram 1500

N0340000AA
AEV's 4" DualSport SC Suspension System for the 2013-18 Ram 1500 introduces revolutionary design concepts and innovative engineering achievements to the aftermarket world of IFS suspension systems. AEVs lineup of DualSport Suspension Systems have long been synonymous with the unprecedented combination of ride quality, handling and off-road performance they deliver. This IFS suspension system for the Ram 1500 is latest addition to the AEV DualSport family and raises the bar for all other premium suspension systems in the aftermarket.


OE front and rear coil springs are retained to preserve the OE ride quality and payload capacity. This also ensures that the intended ride height will be achieved on all cab, wheelbase and trim level combinations. The AEV-specific Bilstein 5100 series front height adjustable struts and rear shock absorbers that are included in this suspension system were developed jointly by Bilstein and AEV engineers exclusively for use with AEVs Ram 1500 DualSport Suspension System. By utilizing digressive valving, these AEV/Bilstein 5100 shocks and struts offer substantial low-speed dampening. The dampening decreases as vehicle speed increases, providing a great ride quality over a wide variety of terrain.


Please note: This suspension system is not compatible with Ram 1500 trucks equipped with the factory air-ride suspension. This suspension system includes AEVs new Low Profile Tie Rod Ends which allow the fitment of an 18" wheel. Wheel offset/backspacing is critical, so AEV recommends an 18x8.5 with a 5.23" backspacing or a 20x9 wheel with 5.25" back spacing. Factory Ram 1500 20" wheels will not fit without wheel spacers.
Limited Supply: only 1 remaining
Pricing: $2,895.00
Qty:

Description

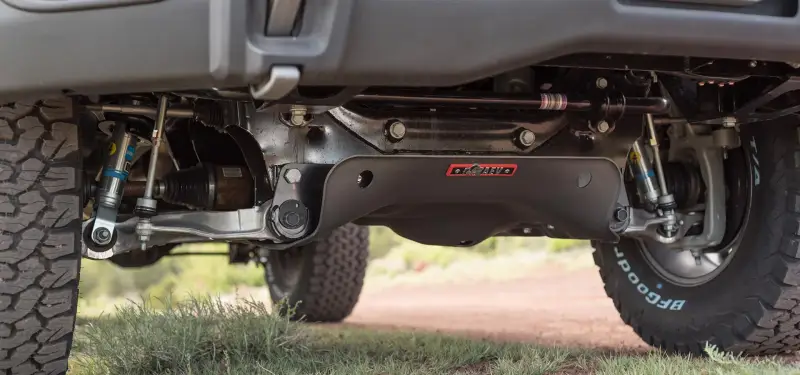

The backbone of the Ram 1500 DualSport Suspension System is AEVs 4mm thick stamped steel skid plate. This skid plate not only offers a significant level of protection, it also serves as the new mounting location for the front differential. Removing the front differential mounting location from the OE engine mounts to the chassis avoids inner CV plunge-limited travel restriction that is otherwise needed due to the torque-roll of the engine-mounted front differential. By stamping this skid plate (as opposed to traditional press brake manufacturing) AEV was able to achieve a more exact fit, maximizing ground clearance. Another critical component of this suspension system is AEVs exclusive, military grade A206 T4 Aluminum Steering Knuckles. These aluminum steering knuckles are manufactured using a much higher grade aluminum than the factory knuckles, move the front hubs forward +8mm for additional tire clearance and offer a considerable reduction in unsprung weight (up to 25lbs!) when compared to many of the cast iron or steel steering knuckles commonly used in aftermarket suspension systems. This weight reduction plays a critical role in achieving the best possible ride quality and handling out of your truck.

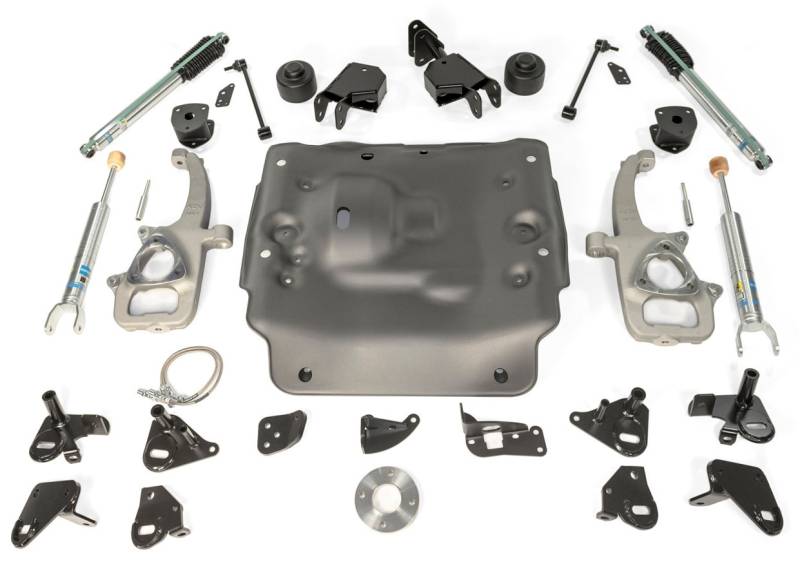

KIT CONTENTS: Military Grade A206 T4 Aluminum Tall Steering Knuckles AEV Low Profile Tie Rod Ends Front Lower Control Arm Drop Brackets Front Differential Relocation Brackets 4mm Stamped Steel Skid Plate Bilstein 5100 Height Adjustable Front Struts Front Upper Strut Mounts Stainless Steel Front Brake Lines Front Sway Bar Endlink Extensions CNC Aluminum Front Driveshaft Spacer Rear Geometry Correction Brackets Rear Upper Control Arm Brackets Rear Coil Spring Relocation Mounts Bilstein 5100 Rear Shock Absorbers Rear Track Bar Bracket Rear Brake Line Relocation Brackets Rear Sway Bar Endlinks Please note: This suspension system is not compatible with Ram 1500 trucks equipped with the factory air-ride suspension. This suspension system includes AEVs new Low Profile Tie Rod Ends which allow the fitment of an 18" wheel. Wheel offset/backspacing is critical, so AEV recommends an 18x8.5 with a 5.23" backspacing or a 20x9 wheel with 5.25" back spacing. Factory Ram 1500 20" wheels will not fit without wheel spacers.

TECH SPECS: Application: 2013-18 Ram 1500 4WD (No Air Ride) Recommended Tire Size: 35x12.50 (or equivalent)

Product Series

Details

  • N0340000AA
  • N0340000AA
  • AEV
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 203.0 lbs.
  • W40.0000” x H24.0000” x L48.0000”
  • $99.00
