AEV 2014-2018 Ram 2500 Diesel-Auto, 3" Suspension 40" Tires

2500 Diesel-Auto, 3" Suspension 40" Tires - 2014-2018 Ram 2500

N0436020AD
Engineered for the Real World

There is certainly no shortage of niche truck suspensions in the aftermarket these days, each one designed for a certain type of customer. There are suspensions that can make your truck look like the ultimate desert racer. There are show truck suspensions that provide massive amounts of lift and eye-catching components. There are even truck suspensions that are designed purely for rock crawling. However, what about a well-engineered, properly tuned suspension system that is designed for the people who rely on their truck every day in the real world? What about all the people who want to install larger tires on their truck without sacrificing payload, ride quality or handling?

This was the inspiration behind the AEV 3 DualSport Suspension System for the 2014+ Ram 2500/3500. We wanted to design the ultimate real world suspension system one that allows greater performance off-road, while also improving driver comfort and vehicle handling characteristics on the road and maintaining the factory load carrying capacity.


Installation of this suspension system on a 2014+ Ram Power Wagon truck will require the purchase of new front and rear coil springs, Mopar PN: 68172091AA (front) and 68091216AA (rear).
Pricing: $2,903.00
Qty:
Free Shipping!

Description

The Formula AEVs Ram DualSport Suspension Systems focuses on optimizing geometry and custom shock tuning to deliver the best on and off-road performance. AEV retains the factory front coil springs mated to 3 cast aluminum coil spring relocation spacers to achieve the additional lift height. This takes advantage of the full range of factory spring rates and frequencies while still providing the necessary front end lift. Steering geometry is corrected by way of AEVs High Steer Kit, which includes a custom AEV drag link, AEV track bar and raised track bar tower. The factory radius arms are repositioned for optimal geometry, moving the axle forward 1. This provides a more neutral impact response, while also allowing more clearance for larger tires. A billet aluminum front driveshaft spacer is included to accommodate the new front axle positioning. 2500 vs. 3500 For many of the same reasons that we chose to retain the factory front coil springs, 2 rear coil spring spacers are included with Ram 2500 suspension systems to provide the necessary lift height without sacrificing ride quality or load carrying capacity. AEV also includes a set of bump stop spacers, rear track bar relocation bracket, sway bar end links and a new power hop bracket (if applicable). The OE leaf springs are retained and new cast iron blocks are installed to provide 2 of lift in the rear on Ram 3500 trucks. New u-bolts and bump stops are also included. Shock Tuning AEV/Bilstein 5100 series shock absorbers are included with all DualSport Suspension Systems. AEV ProCal Module AEVs ProCal Module is a hand-held powerhouse! This essential tool gives Ram owners the ability to correct the speedometer and gear ratio when larger tires are installed. Additionally, the Tire Pressure Monitoring System can now be recalibrated to better suit larger diameter tires. The AEV forged Drag Link that is included in this suspension system will require minor machining of the OE steering knuckle. If you do not feel comfortable machining the steering knuckle yourself or do not have access to a qualified machine shop, AEV can supply you with a pre-machined steering knuckle for an additional charge. Please call our Sales Department at (248) 926-0256 to order. Installation of this suspension system on a 2014+ Ram Power Wagon truck will require the purchase of new front and rear coil springs, Mopar PN: 68172091AA (front) and 68091216AA (rear).

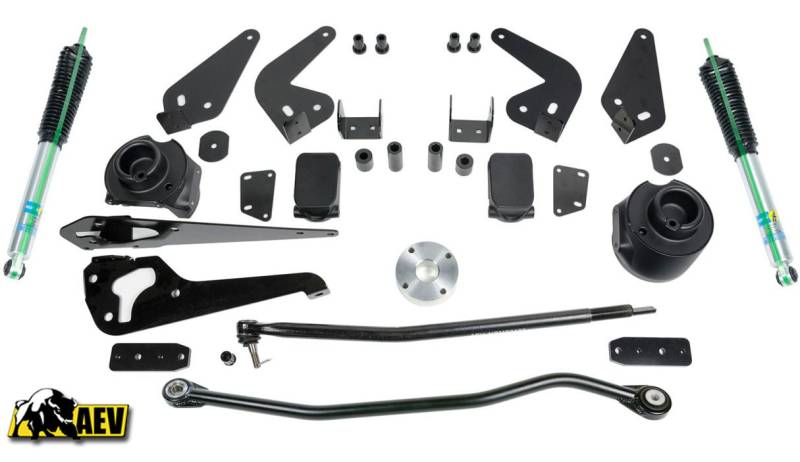

TECH SPECS: Application: Ram 2500, Ram 2500 Power Wagon, Ram 2500 w/ Air RIde, Ram 3500, Ram 3500 Double Cab Chassis SRW 4x4 (60" and 84" C/A) *Call for availability, Ram 3500 Single Cab Chassis SRW 4x4 (60" and 84" C/A) *Call for availability, Ram 3500 w/ Air Ride Recommended Tire Size: 37x12.50R17 on a 17x8.5 wheel w/ 6 backspacing, 40x13.50R17 when used with AEVs 17x10 Katla Wheel, HighMark Fender Flares and Front Bumper Kit Content: Cast Aluminum Front Coil Spring Pad Relocation Mounts Forged Hi Steer Drag Link Custom AEV Tuned Bilstein 5100s Heavy Duty Front Track Bar Front Track Bar Brackets Front Steel Bump Stop Spacers Front Axle Relocation Kit Aluminum Front Drive Shaft Spacer Hardware Pack AEV ProCal Module (Speedometer Recalibration) - NOT COMPATIBLE WITH 2018 MODELS! Cast Aluminum Rear Coil Spring Spacers (Ram 2500) Rear Track Bar Relocation Bracket (Ram 2500) Rear Sway Bar End Links (Ram 2500) Rear Lift Blocks (Ram 3500) Rear U-Bolts (Ram 3500) Rear Bump Stop Spacers Radius Arm Relocation Kit Power Hop Bracket (If applicable) Rear Carrier Bearing Shim Kit (Two Piece Rear Drive Shafts only) Emergency Brake Cable Extension

The AEV forged Drag Link that is included in this suspension system will require minor machining of the OE steering knuckle. If you do not feel comfortable machining the steering knuckle yourself or do not have access to a qualified machine shop, AEV can supply you with a pre-machined steering knuckle for an additional charge. Please call our Sales Department at (248) 926-0256 to order. Installation of this suspension system on a 2014+ Ram Power Wagon truck will require the purchase of new front and rear coil springs, Mopar PN: 68172091AA (front) and 68091216AA (rear).

Product Series

Details

  • N0436020AD
  • N0436020AD
  • AEV
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 174.0 lbs.
  • W40.0000” x H24.0000” x L48.0000”
