TeraFlex JK: Alpine Long Control Arm & Bracket Kit – 8-Arm (3-6” Lift)

TeraFlex JK: Alpine Long Control Arms & Alpine Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6” lifts.

Can be added to an existing suspension lift.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.



On higher lifts, TeraFlex JK: Alpine Long Arm Brackets (INCLUDED) reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.



CAD-engineered Alpine Long Arm Brackets are designed for maximum strength.

By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.





Fits:


• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)



• 3-6” Lift

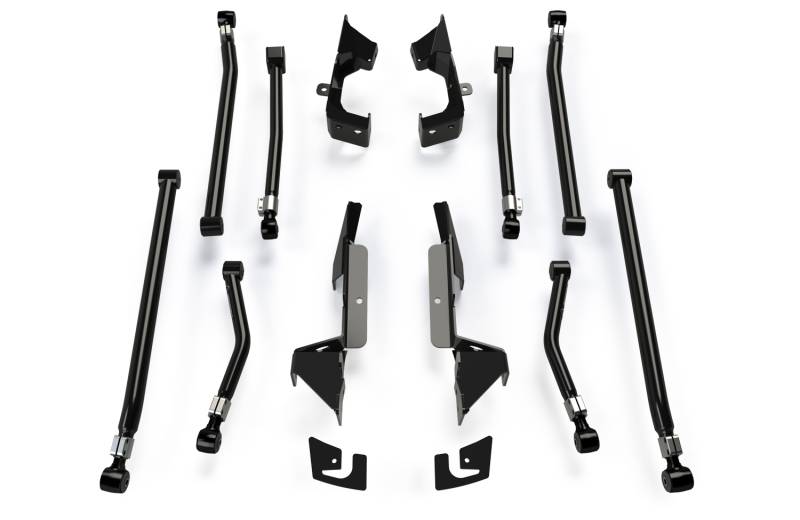

Includes:


Alpine Long Control Arm Kit – 8-Arm (# 1315000):

• Front Upper (# 1315520) – pair

• Front Lower (# 1315500) – pair

• Rear Upper (# 1315560) – pair

• Rear Lower (# 1315540) – pair


Alpine Long Arm Bracket Kit (# 1957000):

• Front Brackets – pair

• Rear Brackets – pair

• Rear Gussets – pair

• All necessary hardware





Features & Benefits:


JK Alpine Long Control Arms:


• Adjustable Alpine Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6” lift kits

• Alpine Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength

• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine Long Control Arms

• Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits



JK Alpine Control Arms
(all):


• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

• Full range of movement will not restrict articulation or flex off-road

• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality.

• Zero maintenance forged threaded joints for smooth quiet flex

• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance

• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

• TeraFlex Lifetime Warranty against defects







Long Control Arm Specs:


JK:
Alpine Long Control Arm Kit – Front Upper (# 1315520):
• Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)

• Factory Length = 18-3/4”

• Min. Length = 27-3/8”

• Max. Length = 28-7/8”

• Axle End = 7/16” (12mm) Bolt

• Frame End = 9/16” (14mm) Bolt

• Thread = 1-1/4”-12 UNF

• Axle Bushing = # 611014

• Frame Bushing = # 611013



JK:
Alpine Long Control Arm Kit – Front Lower (# 1315500):


• Tube Diameter & Wall = 2” X 0.197” (50mm X 5mm)

• Factory Length = 22-5/8”

• Min. Length = 33-3/4”

• Max. Length = 35-1/4”

• Both Ends = 9/16” (14mm) Bolt

• Thread = 1-1/4”-12 UNF

• Both Bushings = # 611011



JK:
Alpine Long Control Arm Kit – Rear Upper (# 1315560):


• Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)

• Factory Length = 17-7/16”

• Min. Length = 20”

• Max. Length = 21-1/2”

• Both Ends = 9/16” (14mm) Bolt

• Thread = 1-1/4”-12 UNF

• Both Bushings = # 611012



JK:
Alpine Long Control Arm Kit – Rear Lower (# 1315540):


• Tube Diameter & Wall = 2” X 0.197” (50mm X 5mm)

• Factory Length = 19-3/4”

• Min. Length = 35-3/4”

• Max. Length = 37-1/4”

• Both Ends = 9/16” (14mm) Bolt

• Thread = 1-1/4”-12 UNF

• Both Bushings = # 611011





Note(s):


• REQUIRES cutting and welding.

• REQUIRES cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• TeraFlex adjustable Long Control Arms (Alpine IR: # 1315000 & Alpine: # 1315000) MUST be used w/ Alpine Long Arm Bracket Kit (# 1957000) – INCLUDED.






Install Time: 12 Hours





Configurations


Alpine Long Control Arms:


• 8-Arm & Bracket Kit (# 1315010)


• 8-Arm Kit (# 1315000)


• Alpine Long Arm Bracket Kit (# 1957000)



• Front Upper (# 1315520) – pair

• Driver Front Upper (# 1131521)

• Passenger Front Upper (# 1131531)

• Replacement Bushings (Axle End: # 611014; Frame End: # 611013)



• Front Lower (# 1315500) – pair

• Driver Front Lower (# 1131501)

• Passenger Front Lower (# 1131511)

• Replacement Bushings (Both Ends: # 611011)



• Rear Upper (# 1315560) – pair
• Driver Rear Upper (# 1131561)

• Passenger Rear Upper (# 1131571)

• Replacement Bushings (Both Ends: # 611012)



• Rear Lower (# 1315540) – pair

• Driver Rear Lower (# 1131541)

• Passenger Rear Front Lower (# 1131551)

• Replacement Bushings (Both Ends: # 611011)
