TeraFlex JK: Alpine Long Control Arm Kit – Rear Upper (3-6” Lift)

TeraFlex JK: Alpine Long Control Arms and Alpine Long Arm Brackets (not included) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6” lifts.

Can be added to an existing suspension lift.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.



MUST be used with TeraFlex JK: Alpine Long Arm Bracket Kit (# 1957000) – NOT INCLUDED.

On higher lifts, Alpine Long Arm Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.



CAD-engineered Alpine Long Arm Brackets are designed for maximum strength.

By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.





Fits:


• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)



• 3-6” Lift





Long Control Arm Specs:


• Tube Diameter & Wall: 1-5/8” X 0.157” (42mm X 4mm)

• Factory Length = 17-7/16”

• Min. Length = 20”

• Max. Length = 21-1/2”

• Both Ends = 9/16” (14mm) Bolt

• Thread = 1-1/4”-12 UNF

• Both Bushings = # 611012





Includes:

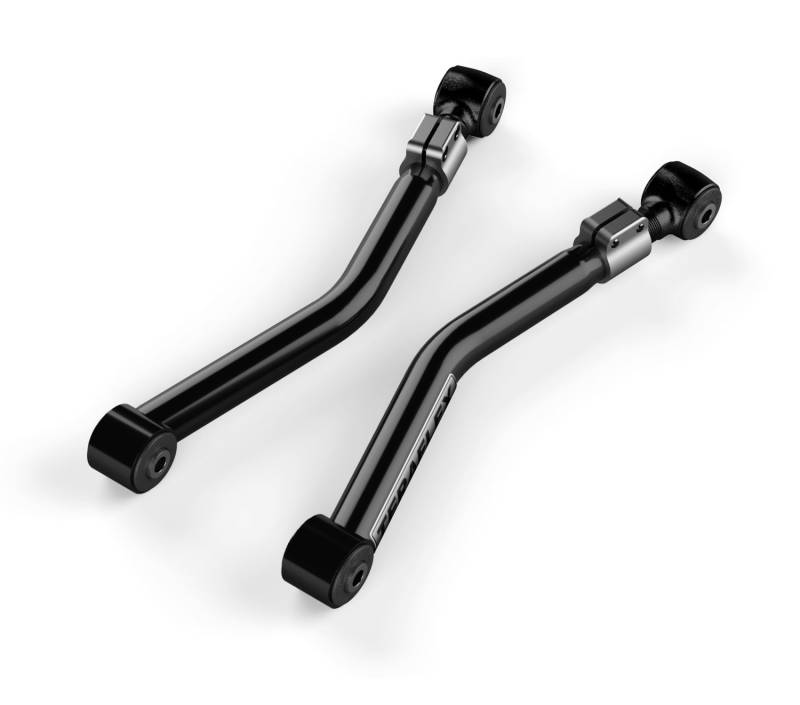

Alpine Long Control Arm:

• Driver Rear Upper (# 1131561)

• Passenger Rear Upper (# 1131571)






Features & Benefits:


JK Alpine Long Control Arms:


• Adjustable Alpine Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3-6” lift kits

• Alpine Long Control Arms are constructed from durable 42mm x 4mm (upper) or 50mm x 5mm (lower) wall DOM tube for maximum strength

• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine Long Control Arms

• Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduced NVH compared to other long arm kits



JK Alpine Control Arms
(all):


• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

• Full range of movement will not restrict articulation or flex off-road

• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality.

• Zero maintenance forged threaded joints for smooth quiet flex

• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance

• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

• TeraFlex Lifetime Warranty against defects





Note(s):


• REQUIRES cutting and welding.

• REQUIRES cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.

• TeraFlex adjustable Long Control Arms (Alpine IR: # 1315000 & Alpine: # 1315000) MUST be used w/ Alpine Long Arm Bracket Kit (# 1957000) – NOT INCLUDED.






Install Time: 2 Hours






Configurations:


Alpine Long Control Arms:


• 8-Arm & Bracket Kit (# 1315010)


• 8-Arm Kit (# 1315000)


• Alpine Long Arm Bracket Kit (# 1957000)



• Front Upper (# 1315520) – pair

• Driver Front Upper (# 1131521)

• Passenger Front Upper (# 1131531)

• Replacement Bushings (Axle End: # 611014; Frame End: # 611013)



• Front Lower (# 1315500) – pair

• Driver Front Lower (# 1131501)

• Passenger Front Lower (# 1131511)

• Replacement Bushings (Both Ends: # 611011)



• Rear Upper (# 1315560) – pair

• Driver Rear Upper (# 1131561)

• Passenger Rear Upper (# 1131571)

• Replacement Bushings (Both Ends: # 611012)



• Rear Lower (# 1315540) – pair

• Driver Rear Lower (# 1131541)

• Passenger Rear Front Lower (# 1131551)

• Replacement Bushings (Both Ends: # 611011)
