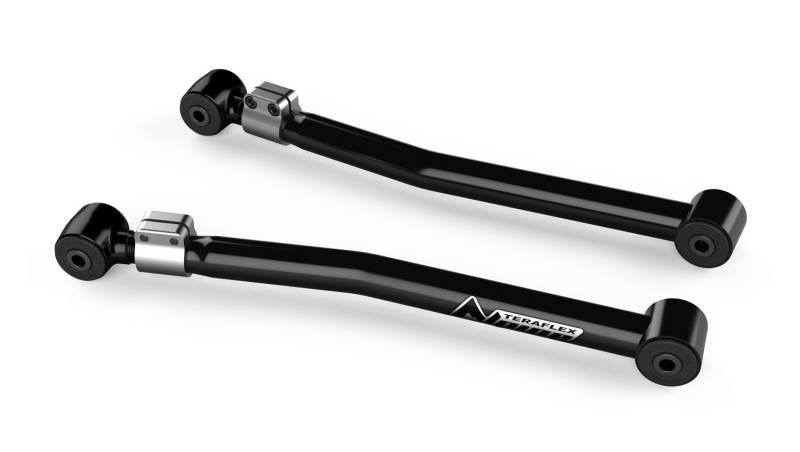

TeraFlex JK: Alpine Short Control Arms Kit – Front Lower (2-4” Lift)

TeraFlex JK: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 2-4” lifts.

Bolts to the factory control arm mounting brackets.

Can be added to any existing suspension lift.



High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.






Fits:


• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)



• 2-4” Lift




Short Control Arm Specs:


• Tube Diameter & Wall: 1-5/8” x 0.157” (42mm x 4mm)

• Factory Length = 22-5/8”

• Min. Length = 22-3/4”

• Max. Length = 24”

• Both Ends = 9/16” (14mm) Bolt

• Thread = 1-1/4”-12 UNF

• Both Bushings = # 611011






Includes:


Alpine Short Control Arms – Adjustable:

• Driver Front Lower (# 1141501)

• Passenger Front Lower (# 1141511)






Features & Benefits:


JK Alpine Short Control Arms:


• Adjustable Alpine Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-4” lift kits

• Alpine Control Short Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength

• Bolts to the factory control arm mounting brackets

• Install and drive simple bolt-on installation – no welding required



JK Alpine Control Arms
(all):


• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

• Full range of movement will not restrict articulation or flex off-road

• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality.

• Zero maintenance forged threaded joints for smooth quiet flex

• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance

• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

• TeraFlex Lifetime Warranty against defects







Note(s):


• Alignment required.





Install Time: 2 Hours





Configurations:


• Alpine Short Control Arms – Adjustable


• 8-Arm (# 1415610)



• Front Upper (# 1415520) – pair

• Driver Front Upper (# 1141521)

• Passenger Front Upper (# 1141531)

• Replacement Bushings (Both Ends: # 611014)



• Front Lower (# 1415500) – pair

• Driver Front Lower (# 1141501)

• Passenger Front Lower (# 1141511)

• Replacement Bushing (Both Ends: # 611011)



• Rear Upper (# 1415560) – pair

• Driver Rear Upper (# 1141561)

• Passenger Rear Upper (# 1141571)

• Replacement Bushing (Both Ends: # 611012)



• Rear Lower (# 1415540) – pair

• Driver Rear Lower (# 1141541)

• Passenger Rear Front Lower (# 1141551)

• Replacement Bushing (Both Ends: # 611011)
