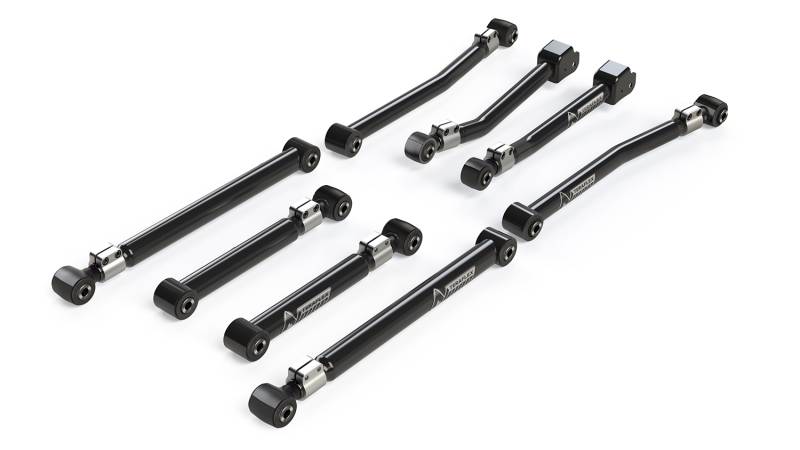

TeraFlex JT: Alpine Short Control Arms Kit – 8-Arms (0-4.5” Lift)

TeraFlex JT: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5” lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.

FEATURES/BENEFITS

JL / JT Alpine Short Control Arms:

• Adjustable Alpine Short Control Arms balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 0-4.5” lift kits
• Alpine Short Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
• Bolts to the factory control arm mounting brackets

JL / JT Alpine Control Arms (all):

• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• Install and drive simple bolt-on installation – no welding required
• TeraFlex Lifetime Warranty against defects

INCLUDES

Alpine Short Control Arms – Adjustable:
• Front Upper (# 1416520) – pair
• Front Lower (# 1416500) – pair
• Rear Upper (# 1417530) – pair
• Rear Lower (# 1417540) – pair

VEHICLE FITMENT INFO

Fits:

• JT Gladiator (pickup)

• 0-4.5” Lift

Control Arm Specs:

JL / JT: Alpine Short Control Arm Kit – Front Upper (# 1416520):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 20.185”
• Min. Length = 20”
• Max. Length = 21”
• Both Ends = 14mm Bolt

JL / JT: Alpine Short Control Arm Kit – Front Lower (# 1416500):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length: 24”
• Min. Length: 24”
• Max. Length: 25.25”
• Both Ends: 16mm Bolt

JT: Alpine Short Control Arm Kit – Rear Upper (# 1417530):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 16-3/8”
• Min. Length = 16-1/8”
• Max. Length = 17-3/8”
• Both Ends = 16mm Bolt

JT: Alpine Short Control Arm Kit – Rear Lower (# 1417540)

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 23-3/4”
• Min. Length = 23-1/2”
• Max. Length = 24-3/4”
• Both Ends = 16mm
• Both Bushings = # 611011

PRODUCT NOTES

• Alignment REQUIRED.

RELATED ITEMS

Alpine Short Control Arm Configurations:

• 8-Arm (# 1417500)

• Front Upper (# 1416520) – pair
• Front Lower (# 1416500) – pair
• Rear Upper (# 1417530) – pair
• Rear Lower (# 1417540) – pair

INSTALL TIME

5 Hours
