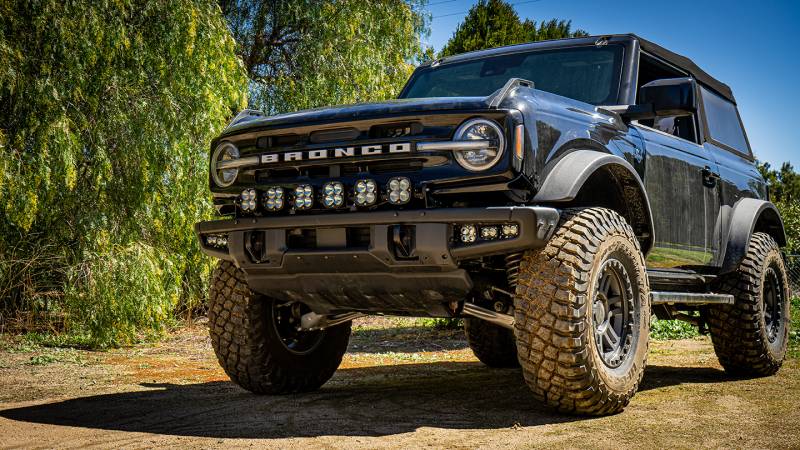

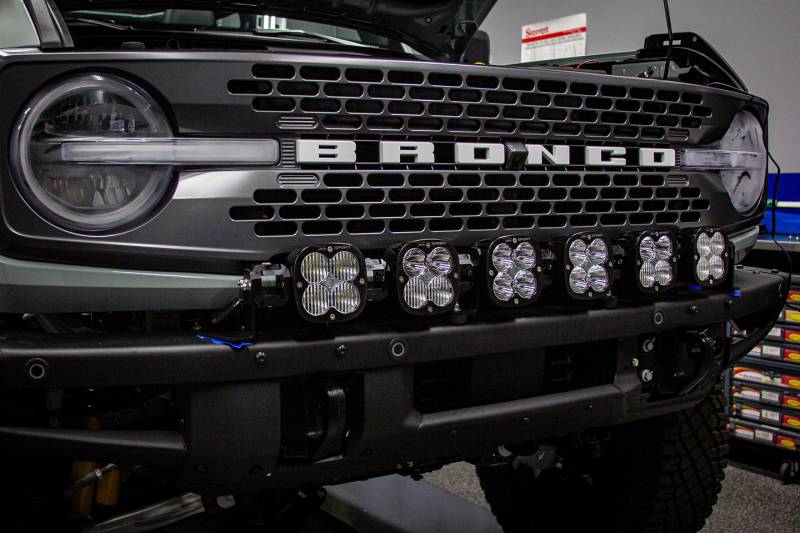

Baja Designs 6 XL Linkable LIght Bar Kit Plastic Bumper Mount w/Upfitter 21-Up Ford Bronco

Additional Images

Your Selected Product

Pricing: $1773.95
  • Qty:
    Free Shipping!
    Chose the wrong fitment?Change your vehicle
    447768UP

    Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

    This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

    This kit is a turn key LED system for theFord Broncoowner that is lookingto drastically improve the looks and performance of their truck.

    Description

    Please Note:This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.

    Baja Designs Features:

    • Satisfactions Guarantee 30 Day Money Back Guarantee
    • Limited Lifetime Warranty Complete Purchase Protection
    • uService Replaceable Lenses And Optics
    • ClearView All The Light, Right Where You Need It.
    • MoistureBlock Waterproof, Rain Proof, Submersible
    • CopperDrive Only LED Driven At 100 percent
    • 5000K Daylight Less Driver Fatigue, Natural Color

    Specifications:

    • Lumens:18,900 Utilizing24 LEDs
    • Wattage/Amps:156W / 12A
    • LED Life Expectancy:49,930 Hours
    • Front Lens:Hard Coated Polycarbonate
    • Housing:Powder Coated Cast Aluminum
    • Bezel:Billet Machined Aluminum
    • Hardware and Bracket Material:Stainless Steel
    • Exceeds MIL-STD810G (Mil-Spec Testing)
    • Built-In Overvoltage Protection
    • IP69K (Waterproof, Submersible to 9ft)
    • IK10 Compliant (Mechanical Impact Testing)

    Includes:

    • x2 XL SportSpotLED Light
    • x2 XL Sport Driving/Combo LED Light
    • x2 XL Sport Wide Cornering LED Light
    • x6 XL Sport Rock Guards
    • Upfitter StyleWiring Harness
    • Vehicle Specific Mounts

    Application:

    2021 - OnFord Bronco w/ PlasticBumper
    Adjustability:

    Patterns:

    Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

    Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

    High Speed Spot:A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
