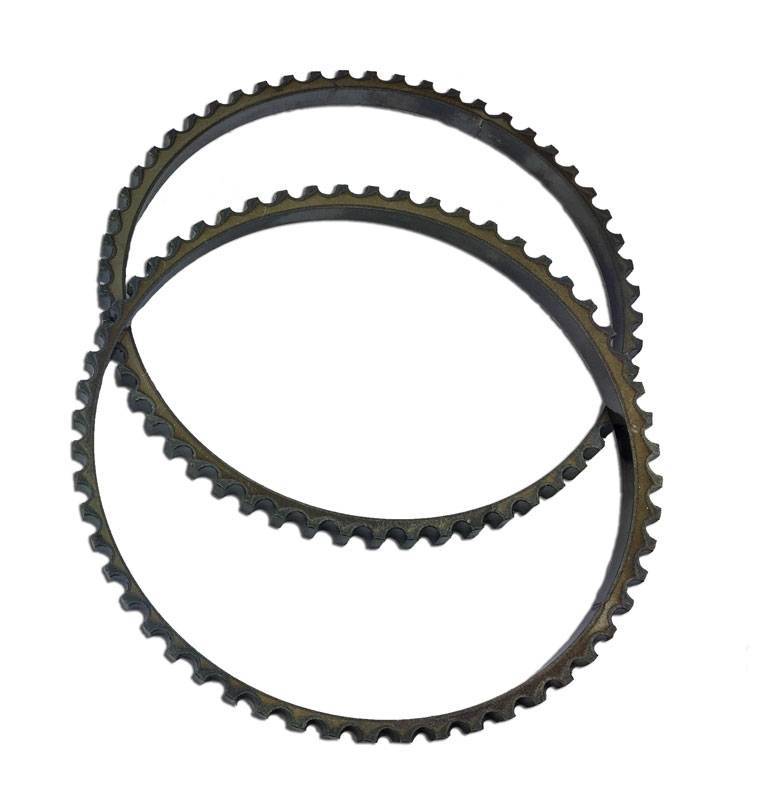

Artec JK 1 Ton 14 Bolt 60 Tooth Tone Ring

SKU: BB1403

Was: $54.99

Sale: $49.49

Save: 10%

Save: $5.50

Description

Details:

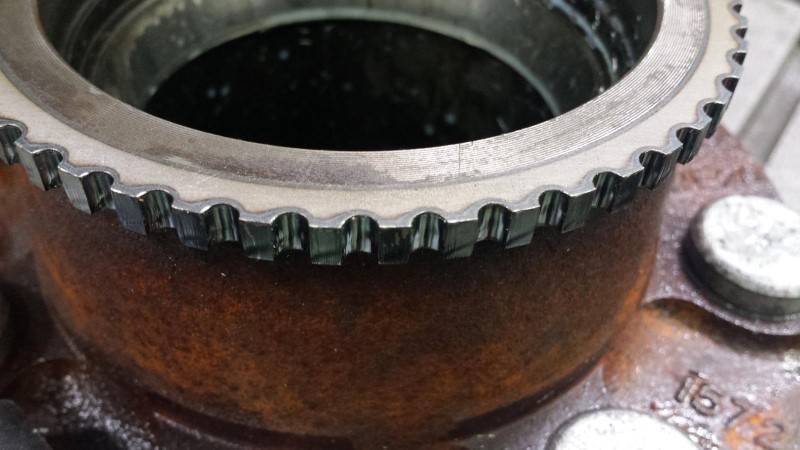

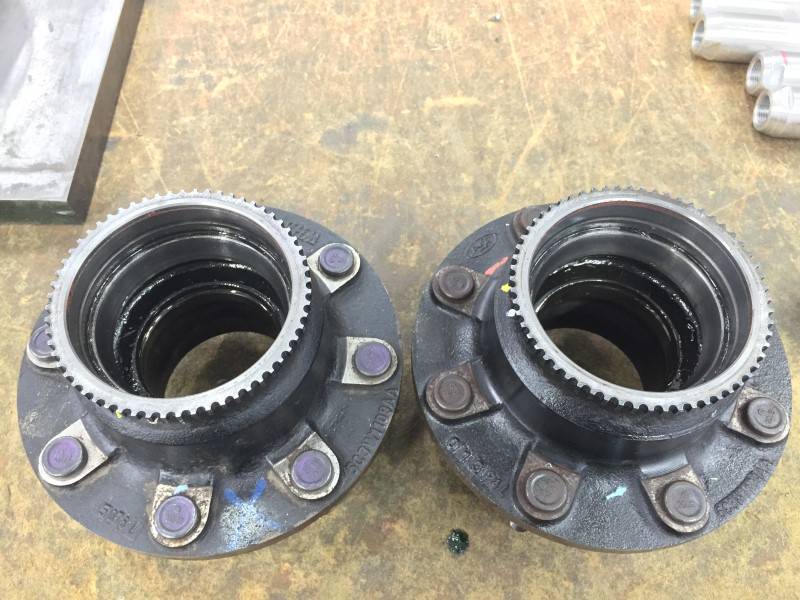

Requires machining of Hub and pressing on over machined surface.
Zinc plated For corrosion resistance and improved sensor feedback
This Kit Is Intended For Use With A Newer Style 14 Bolt Axle With Ribbinh On The Casting And Has A WMS-WMS Measurement of 68 Inch or Greater.
This axle is referred to as an AAM 14 bolt 10.5 inch ring gear and is found Inch 99-06 GM 2500 and 3500 SRW trucks.
14 Bolt Axle with Factory Drum Brakes
BB1420: Kit BB1410 with 52 Tooth Tone rings
BB1421: Kit BB1410 with 60 Tooth Tone rings
This Kit has 2 mounting positions per side For Factory JK Rear ABS Sensors. One from each side will connect to the rear plugs and the other 2 need to be spliced into the front plugs. If using any axle than the 2005 plus Superduty, this is the best option.
If using 2005 - 2013 Superduty Front Dana 60 Axle only 2 Rear Sensors can be installed and the front will use the Dodge ABS Sensors and the 60 Tooth Tone Rings
Dodge ABS Sensors â Chrysler P/N 5179958AB, Dorman P/N 970-052, or Airtec P/N 5S8491
