Artec JK 1 Ton 14 Bolt Sensor Mounts Pair

SKU: BB1411

Pricing: $36.29

Description

Details:

Zinc plated For corrosion resistance and improved sensor feedback
This Kit Is Intended For Use With A Newer Style Disc Brake 14 Bolt Axle With Ribbing On The Casting And Has A WMS-WMS Measurement Of 68 inch Greater. This axle is referred to as an AAM 14 bolt 10.5 inch ring gear and is found Inch 99-06 GM 2500 and 3500 SRW trucks.
14 Bolt Rear Axle with Factory Disc Brakes
BB1430: BB1411 ABS Sensor Mount and 52 Tooth Tone rings
BB1431: BB1411 ABS Sensor Mount and 60 Tooth Tone rings
Individual parts that are Inch this Kit and available separately:

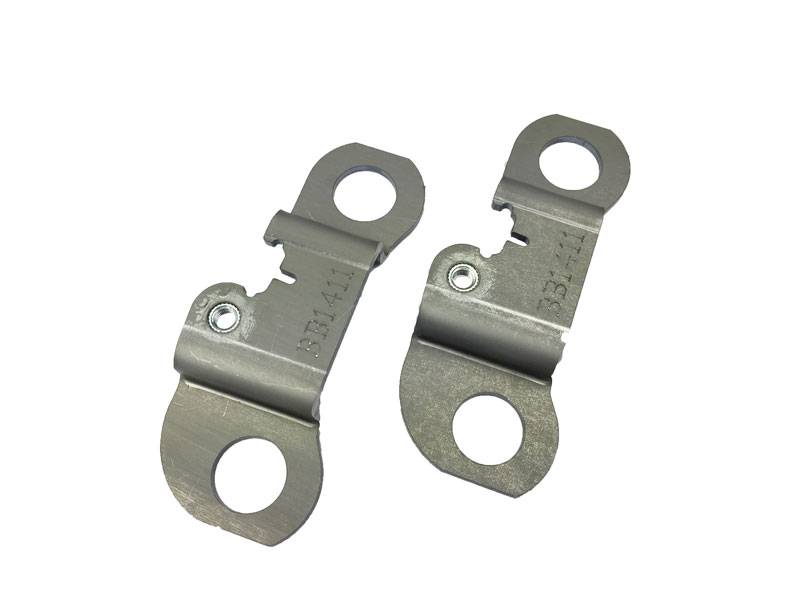

BB1411: 14 bolt Sensor mounts
These mounts are used with JK Factory ABS Sensors. Select the Tooth count to match your front axle, Factory JK and aftermarket axles are typically 52 tooth and the 2005 plus SuperDuty Dana 60 front utilizes a 60 Tooth Tone ring.
If using a front axle without Tone rings a second BB1411 can be used to add a second ABS Sensor to each wheel and then splice into the front sensor wiring.
