Artec Aluminum Ultimate Dana 60 High Steer Arms 5-hole Pair

• CNC Machined from Billet 7075 Aluminum
• 1/3rd of the weight of steel
• Designed to incorporate Knuckle Bolt Kit increasing strength
• Optional Knuckle Bolt Kit puts full hydro in Double Sheer
• Crossover Steering or Full Hydraulic Steering compatible
• Machined blank to allow customizable tie rod location
• Crossover hole drilling for GM TRE's or 3/4 inch bolts available
• Proper 9 degree angle to compensate for knuckle kingpin inclination
• Springless design eliminates slop caused by preloaded spring

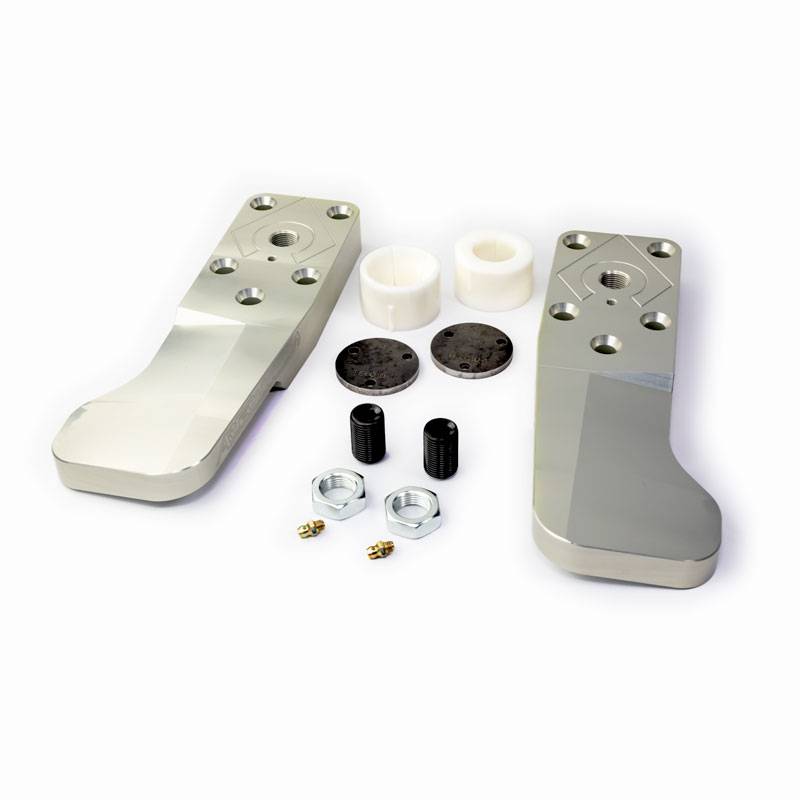

• Springless hardware included
• Grease zerk fitting for kingpin lubrication

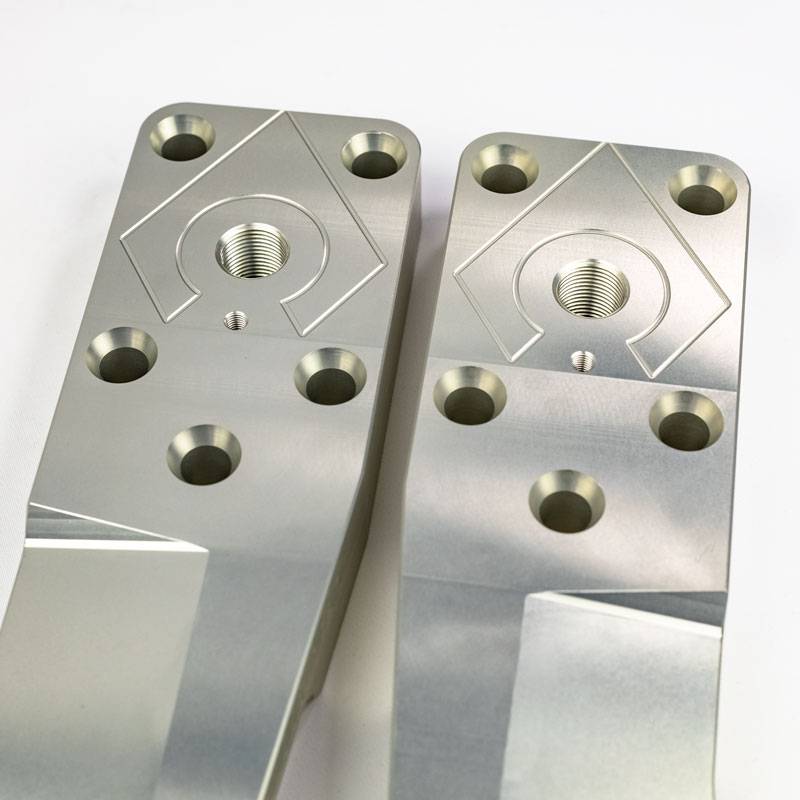

• 5 tapered stud holes for use with OEM or Reid Racing Knuckles

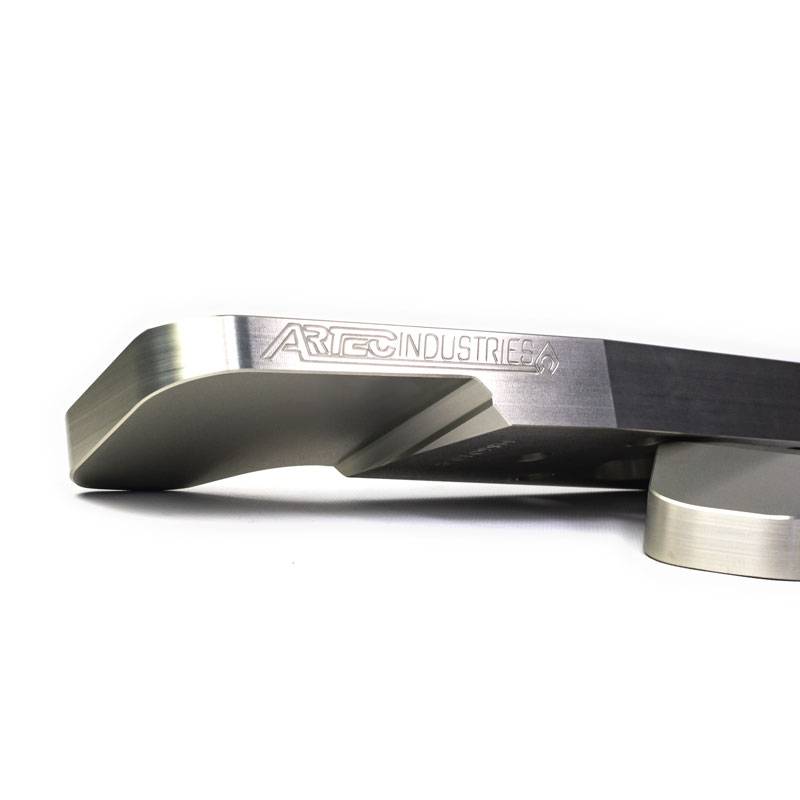

• Precision machined Artec Industries Logo
• Aerospace-quality spec machined
• Clear Anodized for corrosion resistance
• Differential: Dana 60
• Sold As: Pair

Note: Wheels with extremely large backspacing should not be used in conjunction with this high steer arm. These arms have been confirmed to fit 17 inch, 4.75 inch backspaced wheels. Will not work with factory backspaced H1 wheels. The bulge on the side of the arm measures 1.25 inch from the spindle mounting surface. Please confirm you have adequate space between arms and wheels/tires.
