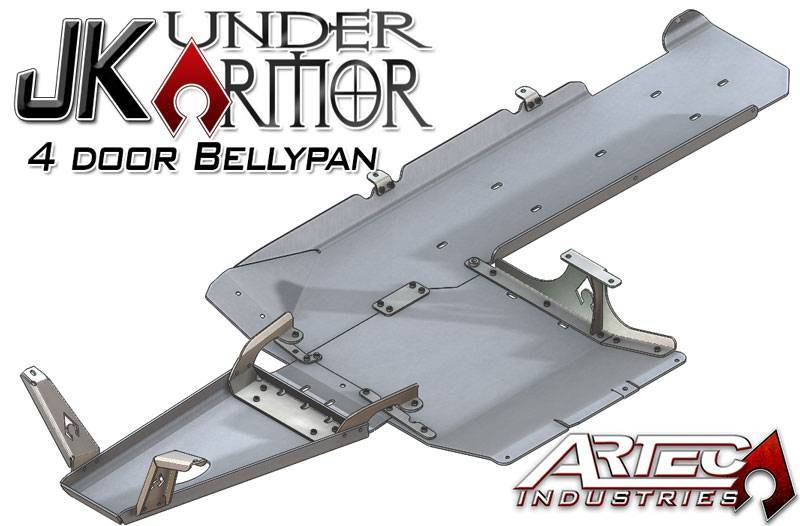

Artec JK Under Armor 4 Door Bellypan Kit 07-11 Wrangler JK Unlimited

SKU: JK1011

Pricing: $2,499.99

Description

Features:

Sold as Each
07-11
1/4 inch 6061 Aluminum For skid plates, 3/16 inch zinc plated steel For bracketry
Designed from factory CAD files For great and precise fit.
CNC laser cut and CNC formed using custom rolled dies For high strength and a unique look.
All bolts under skid plate are countersunk For absolutely smooth bottom
All nuts are pressed into steel brackets For Easy, one tool removal
Modular design lets you take off only one section For vehicle servicing
Protects Oil Pan, Transmission Pan, Gas Tank, Front Exhaust and Transfer Case
No removal of gas tank needed, simply bolt Inch place
Works best with Artec JK Heavy Duty Cross members
Clearanced near rear drive yoke shaft to prevent rubbing
Loop delete needed if using long arm HD cross member with link mounts.
A small amount of trimming will be required on the factory Gas Tank Skid plate.
Not compatible with exhaust spacer Kits such as Terflex.
May not work with aftermarket Evap Canister Skid Plates, relocation is suggested.
May not be compatible or may need to be modified to work with Aftermarket Suspensions that use a proprietary cross member.
Using the factory cross member, some holes must use factory hardware which is not countersunk.
For a completely smooth bottom, use Artec HD Cross members.
Transmission Cooler lines may need to be removed from clip and tied up slightly
