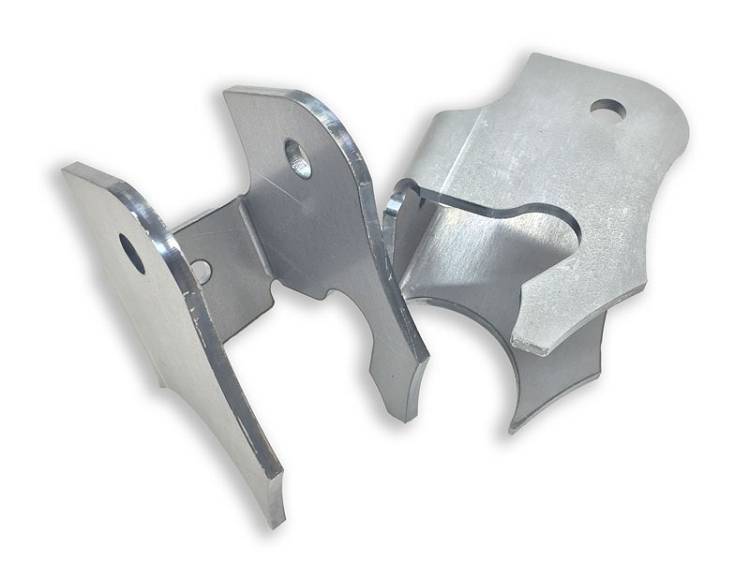

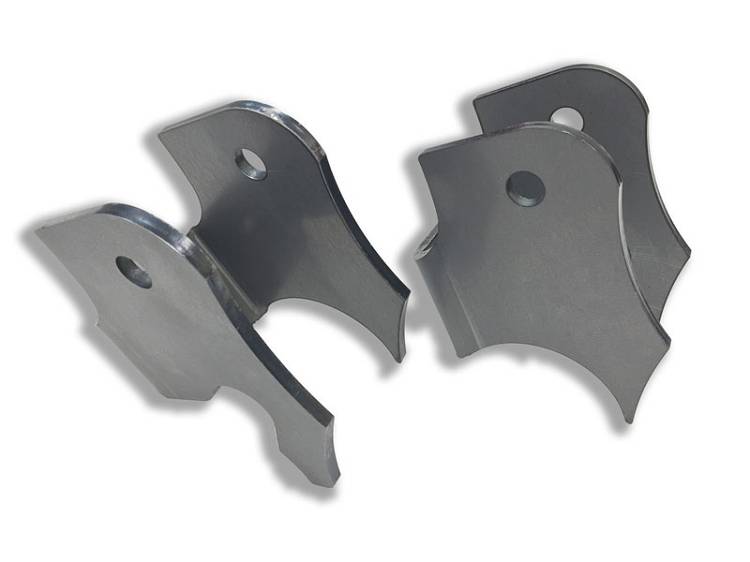

Artec JK HD Rear Axle UCA Brackets Pair

SKU: JK4424

Please Call for Availability

800 528 3402

Description

Features:

Sold as Pair
1/4 inch and 10Ga. thick mild steel truss. Precision CNC cut and bent For great fitment.
Truss is low profile allowing ideal mounting height of an aftermarket 3 link suspension system, if desired.
Truss spans entire length between spring buckets, aprox. 26.5 inch
Truss is reinforced using interlocked 10 Ga. thick dimple died gussets For maximum strength and easy assembly.
Overall low profile design means your axle is stronger, sleaker, and less likely to interfere with vehicle components.
Made from 1/4 inch thick boxed steel plate For strength.

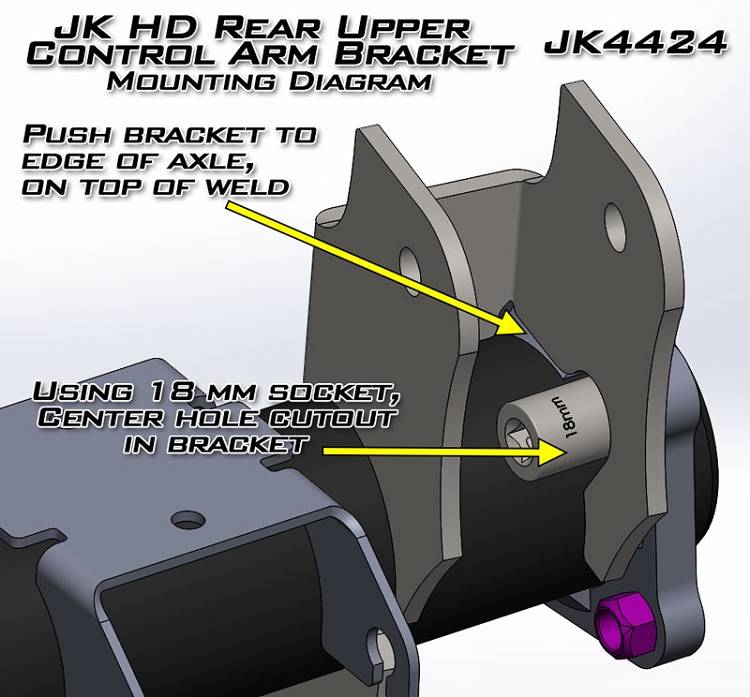

Use 18mm socket on factory brake flange to line up bracket
The Style of the bracket gives a unique, custom one-off look you'd get with a high dollar fabrication shop. No more brackets that look like modified pieces of angle iron or c-channel, but rather formed pieces of artwork to show off.
This bracket requires welding to the axle and removal of the factory bracket. Welding should be done by a competent welder and Artec Industries is not liable For incorrect installation or improper welding.
