Artec JK 1 Ton Front Dana 60 Swap Kit W/Daystar Bushings
JK6011

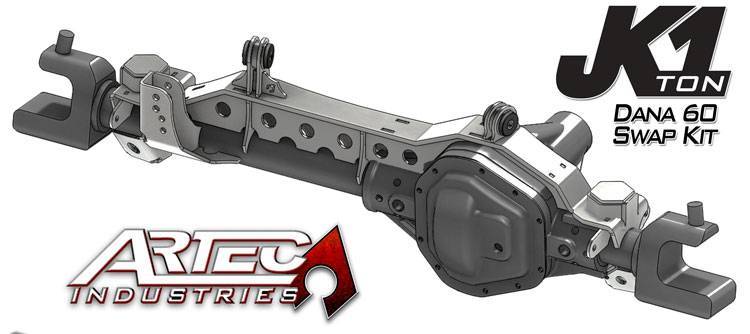

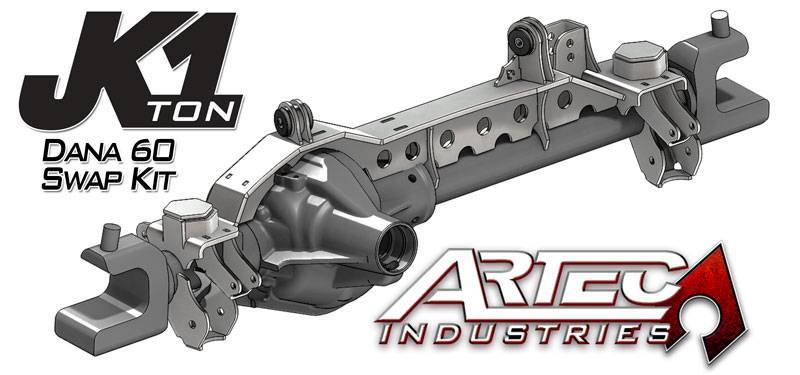

Artec JK 1 Ton Front Dana 60 Swap Kit W/Daystar Bushings
Pricing:
$626.99
Description
Features:
- Sold as Each
- UCA Mount Style: Daystar Bushings Inch Factory location
- Single Adjustable Truss Upper Link Mount For use with heims (2.63 inch mounting width) Inch a 3-link Style suspension
- 1/4 inch thick mild steel truss and brackets For much higher strength than the factory bracket and other aftermarket brackets. Precision CNC cut and bent For great fitment.
- Includes all the brackets necessary For a complete axle swap including upper and lower control arm mounts, shock mounts, anti-sway bar mounts, tracbar mount, and coil spring mounts.
- Save hours of installation time. Brackets are jigged into truss and set exact position automatically. All other brackets just need to line up to truss, no guessing and measuring involved.
- Easily upgradeable For future link geometry changes. Just trim off factory location upper control mounts and weld on a new centered link mount.
- Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
- Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
- This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder who understand different materials.
- Some welding of cast and mild steel will be used.
- Artec Industries implies no guarantees or warranties and is not liable For improper installation.
- Some grinding and fitment may be required when installing this Kit. Every axle varies slightly and some fabrication may be required.
- Will require brake line relocation to fit.
- In rare and extreme cases, the truss may come into contact with oil pan.
- Prior to operating the vehicle, remove the coil springs, cycle the suspension including full compression of both sides simultaneously and add bumpstop extensions to prevent damage to oil pan.
Details
- JK6011
- JK6011
- 8.17E+11
- Artec Industries
- New
Categories
Shipping Information
- Item Requires Shipping
- 49.0 lbs.
- W7.0000” x H7.0000” x L48.0000”
- Free Shipping!
