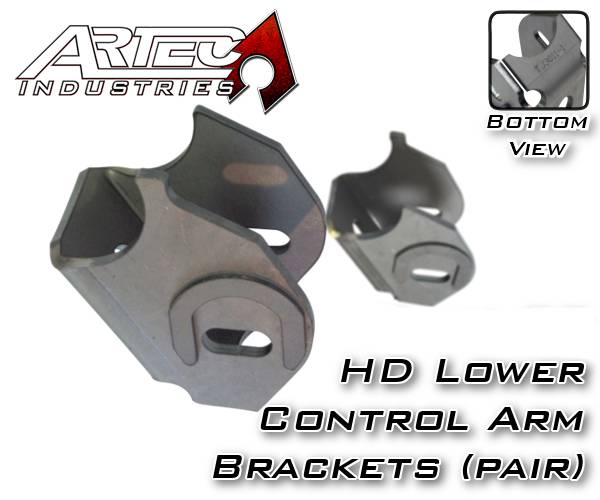

Artec Dana 30 HD LCA Brackets CAM Slot W/Horseshoe

SKU: TJ3011

Was: $93.49

Sale: $84.14

Save: 10%

Save: $9.35

Description

Details:

Sold as Pair
Install. Note: It It Recommended To remove The Upper Ball Joint Prior To Welding These Inner C Gussets.
Features include:
2.625 inch mounting width fits common sized Cartridge Joints (Johnny, Flex, Ballistic, etc) and factory control arm bushings.
Horseshoe around CAM bolt is laser etched with factory alignment lines For easy adjustments.
Skid plate of bottom of bracket wraps around joint protecting it from direct impact and decreases premature wear on the joint.
This leads to longer life and less replacements. Skid plate design does not restrict movement of joint.

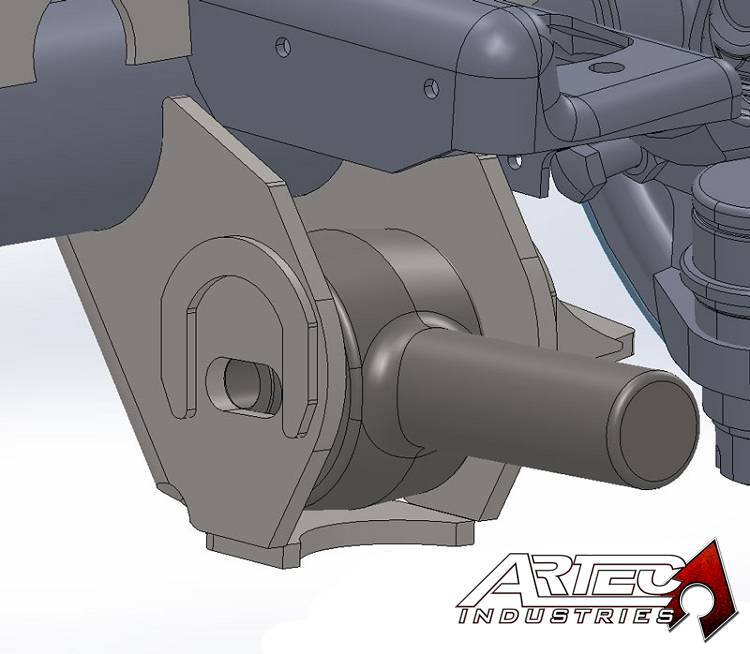

Bracket wraps around axle tube more than factory For additional weld surface area, which significantly reduces the chance the bracket can rip off.
Made from 1/4 inch thick boxed steel plate For strength and impact resistance.
Grease fitting access on top to allow easy maintenance of your most abused joint.
If Using Factory Control Arms, You May Need To Grind Off A Small Amount Of The Metal Below The Bushing To Clear The Skid Plate On The Bracket

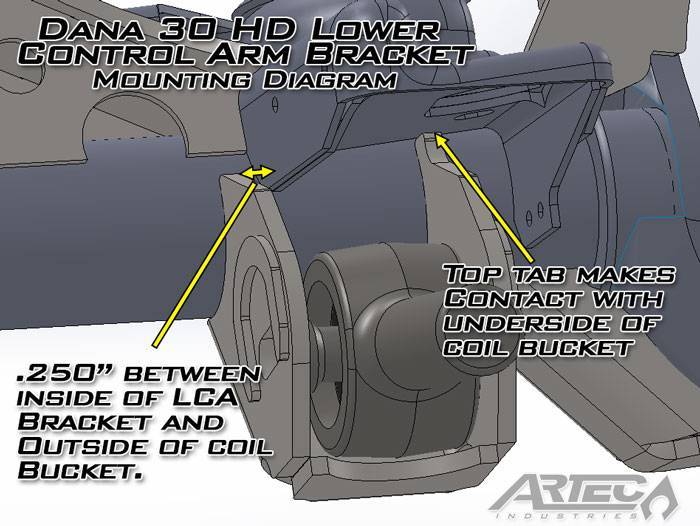

This bracket requires welding to the axle and removal of the factory bracket.
Welding should be done by a competent welder and Artec Industries is not liable For incorrect installation or improper welding.
Horseshoe pieces also require welding to the main bracket and the main bracket is laser etched to show where to weld.
