Artec Coil / LCA Combo Brackets For TJ/LJ/XJ/ZJ Front Axle CAM Slot

TJ3017

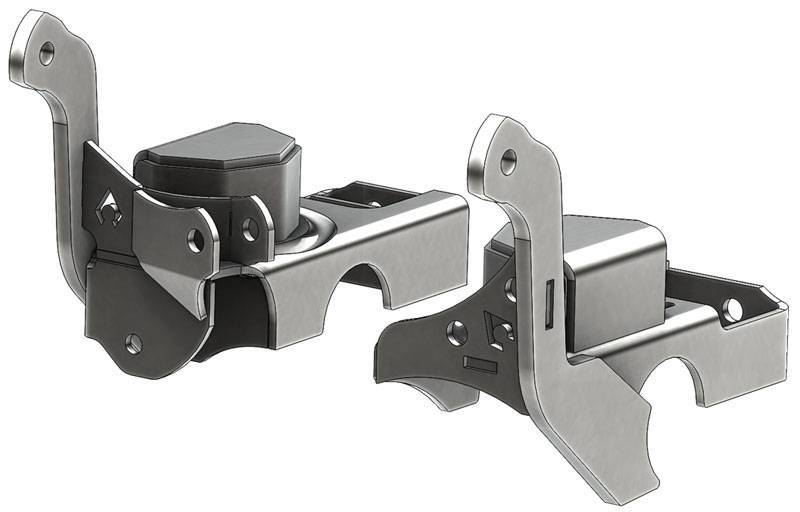

Artec Coil / LCA Combo Brackets For TJ/LJ/XJ/ZJ Front Axle CAM Slot
Was: $307.99
Sale: $277.19
Save: 10%
Save: $30.80
Qty:
Free Shipping!

Description

Details:

  • Sold as Each
  • Include Lower Control Arm (LCA) brackets: Yes includes LCA Brackets with CAM Slot
  • Direct replacement For brackets on a Dana 30 front end For a TJ, LJ, XJ, and ZJ. Also works on Rubicon Dana 44 on TJ and LJ.
  • Fits exact width of factory bracket so other axle components (trusses, gussets, bolt on brackets) won't need modification. Other companies make a bracket but it doesn't match the factory width of the whole bracket.
  • 3/16 inch thick mild steel brackets are 50% thicker than factory brackets. Precision CNC cut and bent For great fitment.
  • Includes all the attached brackets necessary to replace the factory coil buckets including shock mounts, anti-sway bar mounts**, steering stabilizer mount, and trackbar bracket.
  • Add-on Lower Control Arm (LCA) Brackets available with both 9/16 inch hole and CAM slot Style. Bracket design allows easy installation Inch factory position.
  • Bracket pieces are tabbed and slotted to set exact position automatically. Complex CNC bent flanges make assembly straightforward and easy.
  • Coil correction Stamped into coil bucket For a flush standing coil. Others mount a not flat coil on a flat coil bucket resulting Inch bowing or leaning.
  • Tracbar mount is adjustable For wider mounting width joints such as a 2.0 inch Currie Johnny Joint.
  • Shock mounts are adjustable For shock end mounting widths.
  • Perfect starting piece For swapping Inch a different axle, just modify the axle tube diameter.
  • This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.
  • Artec Industries implies no guarantees or warranties and is not liable For improper installation.
  • Some grinding and fitment may be required when installing this Kit. Every axle varies slightly and some fabrication may be required.
  • Some changes to factory positions have been altered.
  • The Anti-sway bar bracket hole is 2.75 inch higher than factory hole to allow For clearance with crossover steering.

Details

  • TJ3017
  • TJ3017
  • 816791026170
  • Artec Industries
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 20.3 lbs.
  • W1.0000” x H1.0000” x L1.0000”
  • Free Shipping!
