Artec JK2TJ Rear Swap Kit W/Truss
TJ4418
Artec JK2TJ Rear Swap Kit W/Truss
Pricing:
$571.99
Description
Details:
- Sold as Kit

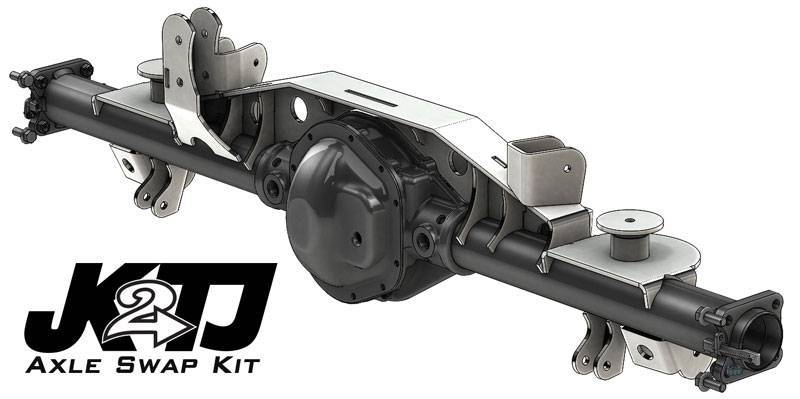

- The JK D44 axle has a different 5 lug bolt pattern than the factory axle so new wheels will be needed. It is also a wider axle so prepare For the WMS to be wider than your factory axles.
- Only to be used with our JK2TJ Front Axle Swap Kit.

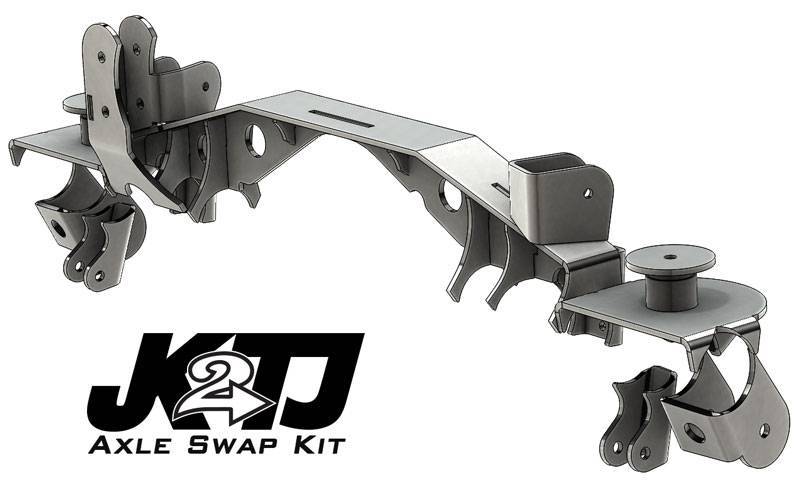

- 1/4 inch thick mild steel truss and brackets For much higher strength than the factory bracket and other aftermarket brackets.
- Precision CNC cut and bent For great fitment.
- Includes all the brackets necessary For a complete axle swap including upper and lower control arm mounts, shock mounts, anti-sway bar mounts, trackbar mount, and coil spring mounts.
- Save hours of installation time. Brackets are jigged into truss and set exact position automatically.
- All other brackets just need to line up to truss, no guessing and measuring involved.
- Trackbar mount includes both factory location and lifted bracket location For those who have aftermarket lifts.
- Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
- Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
- Note: This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.
- Artec Industries implies no guarantees or warranties and is not liable For improper installation.
- Some grinding and fitment may be required when installing this Kit. Every axle varies slightly and some fabrication may be required. Will require brake line relocation to fit.
Details
- TJ4418
- TJ4418
- 8.17E+11
- Artec Industries
- New
Categories
Shipping Information
- Item Requires Shipping
- 43.0 lbs.
- W1.0000” x H1.0000” x L1.0000”
- Free Shipping!
