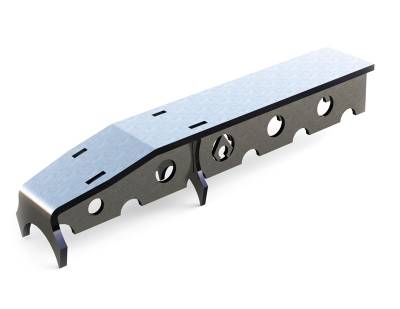

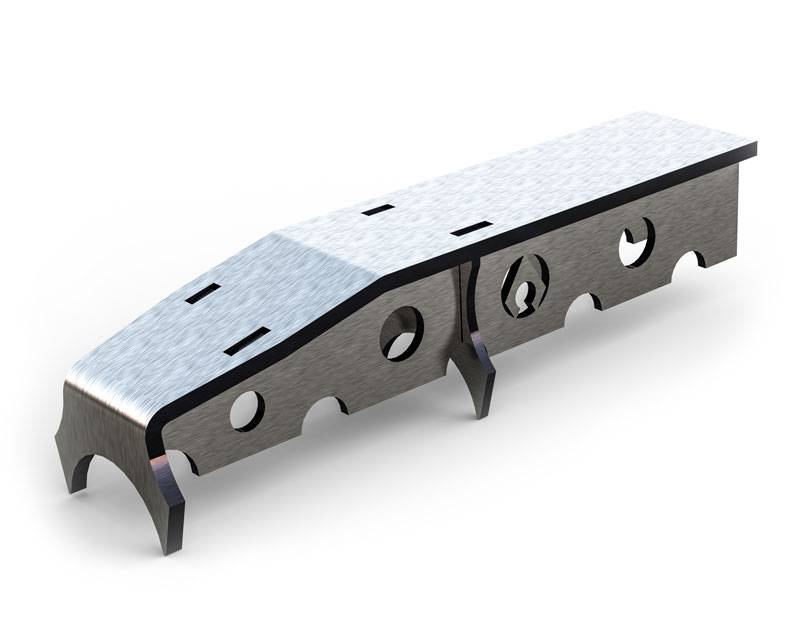

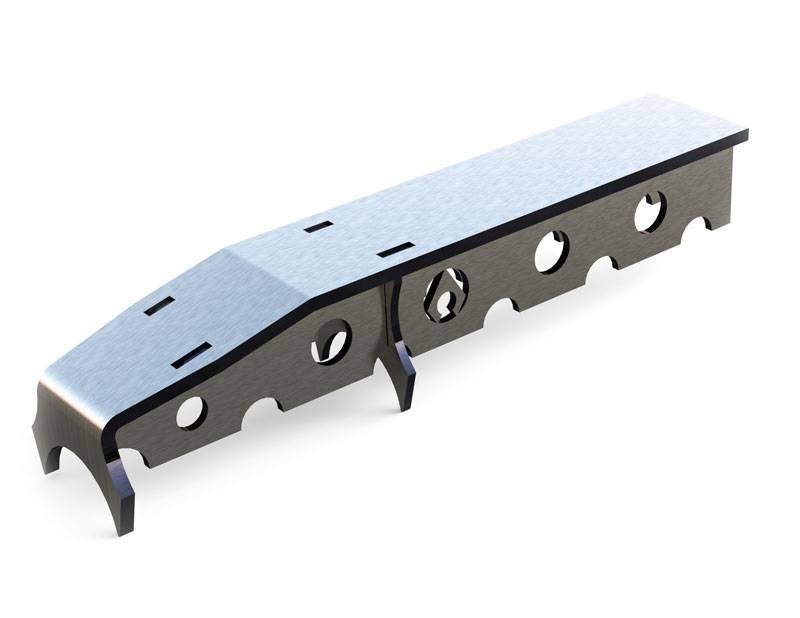

Artec Modular Truss End 3.5 Inch Long

• Modular Truss End 3.5 inch Axle Tube Diameter Long 20.73 inch Length
• Sold as a kit
• 3/8 inch thick mild steel truss top and 1/4 inch mild steel gussets. Precision CNC cut and bent for great fitment
• Works great with Artec Modular and Short Trusses AND pretty much any short style truss even from other manufacturers
• Allows customization of your truss system to fit your needs
• Provides a lower profile than a standard rear truss, perfect for clearing rear frame rails and providing a bump-stop pad
• Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly
• Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components

Note:

• This truss end is flat on the end and Not contoured to any truss. This Requires Trimming To Fit. This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is Not liable for improper installation.
• Some grinding and fitment may be required when installing this item. Every axle varies slightly and some fabrication may be required.
