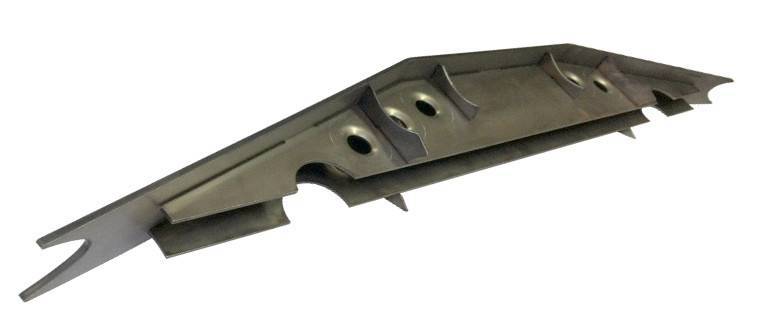

Artec Ford 9 Inch Rear Top Truss 3.5 Inch Tube

SKU: TR0902

Pricing: $229.99

Description

Details:

Sold as Each
Axle Tube Diameter: 3.5 Inch
This truss has no cutout For the center section. It will require trimming to fit.
1/4 inch thick mild steel truss top and 10 gauge (.130) mild steel gussets.
Precision CNC cut and bent For great fitment.
Large gussets are dimple die For increased strength while allowing a savings Inch weight.
Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle centerline.
Truss spans entire length of axle For complete reinforcement of the axle tubes - not just For mounting links.
Truss is reinforced using interlocked 10 gauge thick gussets For maximum strength and easy assembly.
Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.
Artec Industries implies no guarantees or warranties and is not liable For improper installation.
Some grinding and fitment may be required when installing this Kit.
Every axle varies slightly and some fabrication may be required.

Universal
