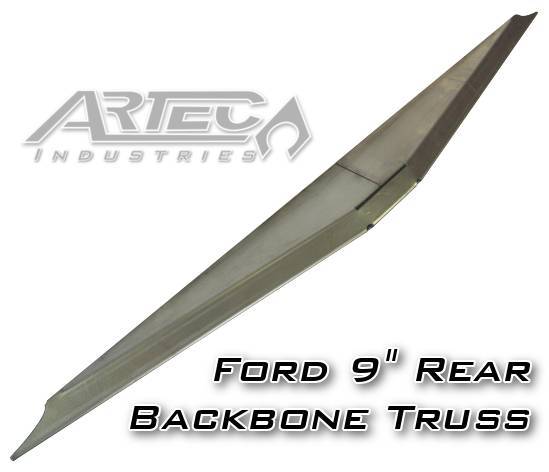

Artec Ford 9 Inch Backbone Truss 3.0 Inch Tube

SKU: TR0905

Was: $144.99

Sale: $130.49

Save: 10%

Save: $14.50

Description

Details:

Sold as Each
Axle Tube Diameter: 3.0 Inch
This Kit includes:
One 7/8 inch -14tpi Chromoly rod end with 3/4 inch bore
One jam nut
One Wrench Flats tube adapter For 1.0 ID -1.5 OD tubing
Two stainless steel 5/8 inch-3/4 inch high misalignment spacers.
The mounting width with the spacer is 1.75 inch with a 5/8 inch hole.
This truss has no cutout For the center section.
It will require trimming to fit.
10 gauge (.130) mild steel.
Precision CNC cut and bent For great fitment.
Unique shaped offers maximum rigity while acheiving a light weight.

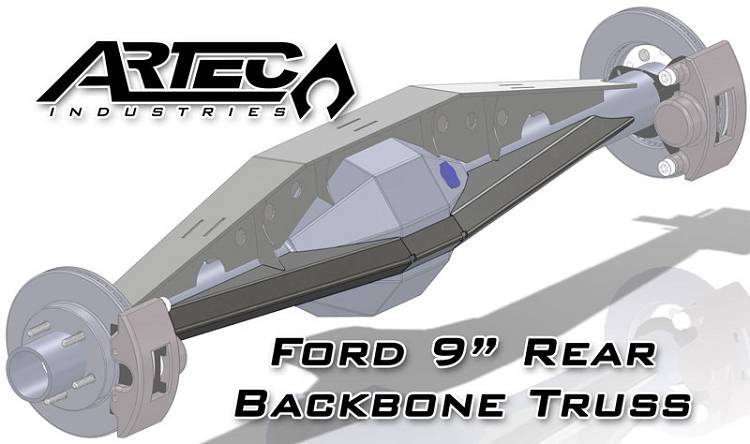

Truss spans entire length of axle For complete reinforcement of the axle tubes.
Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
This Kit requires general welding and fabrication skills.
Welding should only be done by a competent welder.
Artec Industries implies no guarantees or warranties and is not liable For improper installation.
Some grinding and fitment may be required when installing this Kit.
Every axle varies slightly and some fabrication may be required.

Universal
