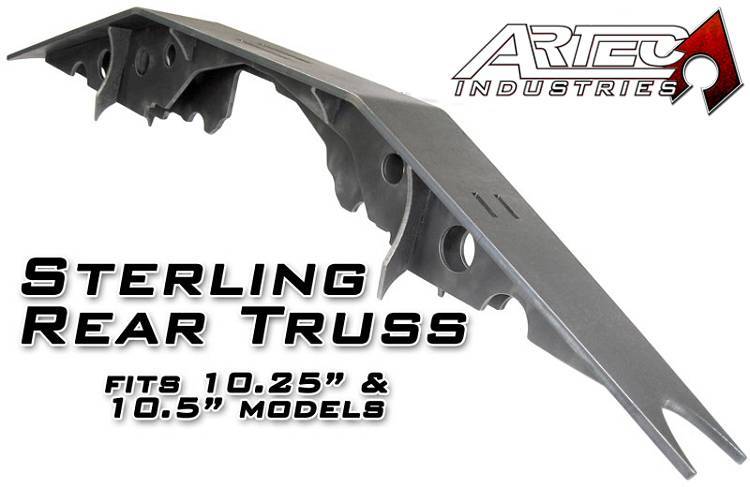

Artec Sterling 10.25 Rear Truss

• Sold as Each
• This truss allows For a selection of pinion angles from 7 to 20 degrees. Any more or less and some trimming may be required.
• This truss fits Sterling 10.25 axles with a centered differential.Overall length on this truss is about 53 inches. Also fits Sterling 9.75 inch and 10.5 inch axles with minor trimming.
• This truss is very form fitting to the contours of the casting.
• Due to variances Inch casting of this axle over the years, some trimming may be necessary on the truss and non-essential parts of the casting.

Features include:

• 3/8 inch thick mild steel truss top and 1/4 inch mild steel ram mount and gussets. Precision CNC cut and bent For great fitment.
• Truss is low profile allowing link joints to be mounted with ideal geometry - about 9 inches from the axle centerline.
• Truss spans entire length of axle For complete reinforcement of the axle tubes - not just For mounting links.
• Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
• This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.
• Artec Industries implies no guarantees or warranties and is not liable For improper installation.
• Some grinding and fitment may be required when installing this Kit. Every axle varies slightly and some fabrication may be required.
