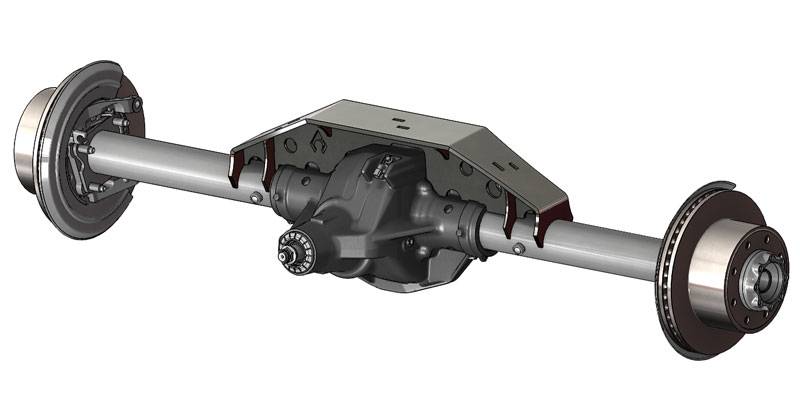

Artec Sterling 10.25 Rear Modular Truss

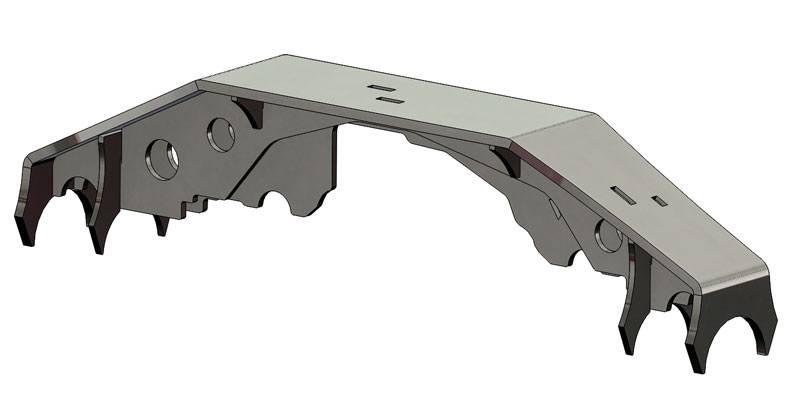

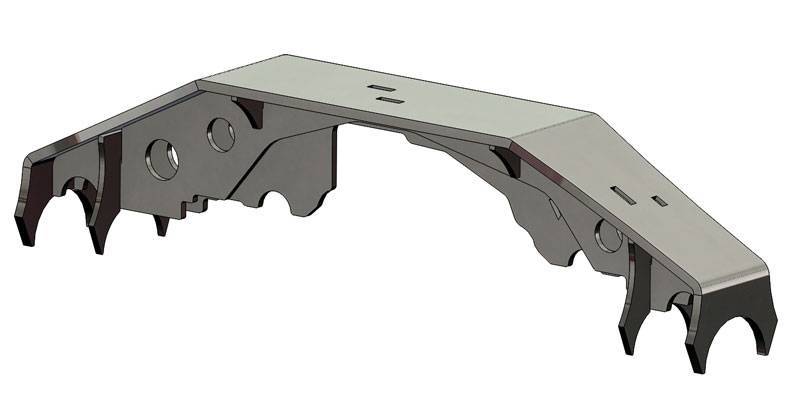

• Sterling 10.25/10.5 Rear Modular Truss
• Sold as kit
• 3/8 inch thick mild steel truss top and 1/4 inch mild steel gussets. Precision CNC cut and bent for great fitment.
• Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle center line.
• This Modular truss is shorter to allow use with factory leaf spring perches or our add-on coil or leaf spring perches. This flexibility means that if you change from leaf spring to coil spring, you don't have to remove the whole truss, just the end brackets.
• Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components.

Note:

• Leaf spring option is for standard YJ width but is for spring over axle (SOA), Not spring under (SUA). The kit does Not include u-bolts. Coil spring option is for stock Rear TJ coils (the wider ones) Not TJ front coils.
• This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is Not liable for improper installation.
• Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
