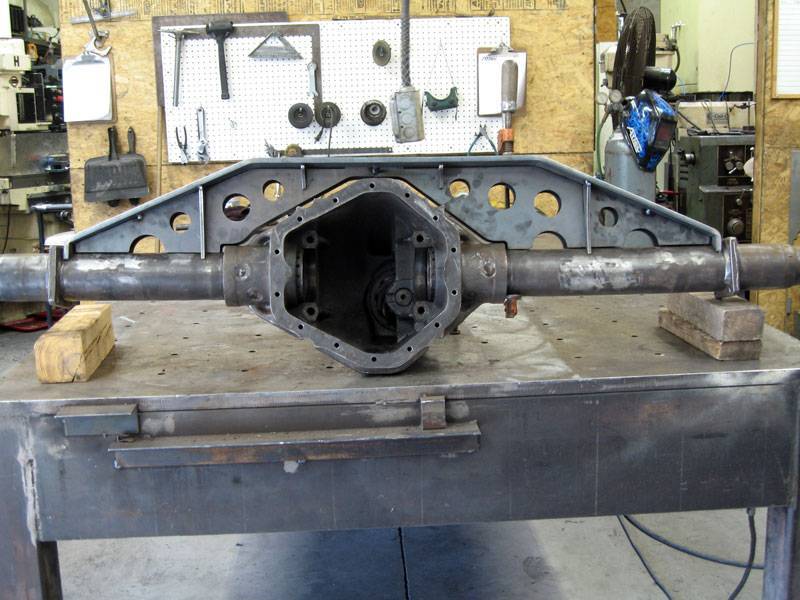

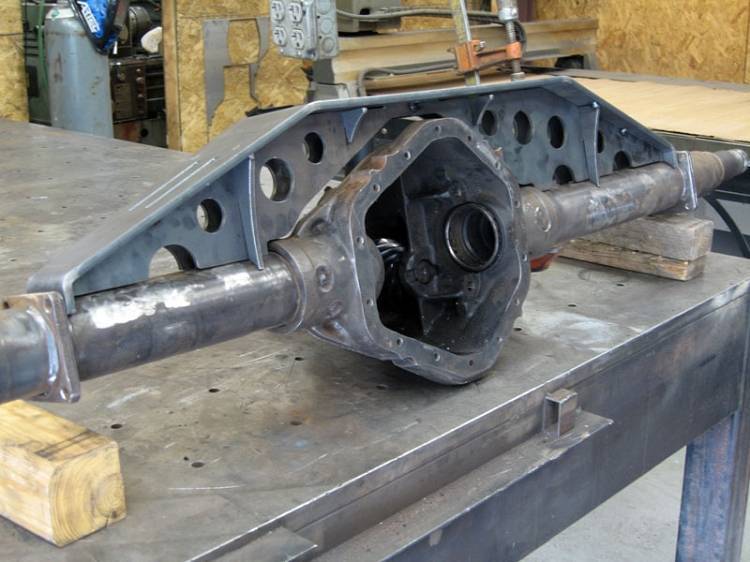

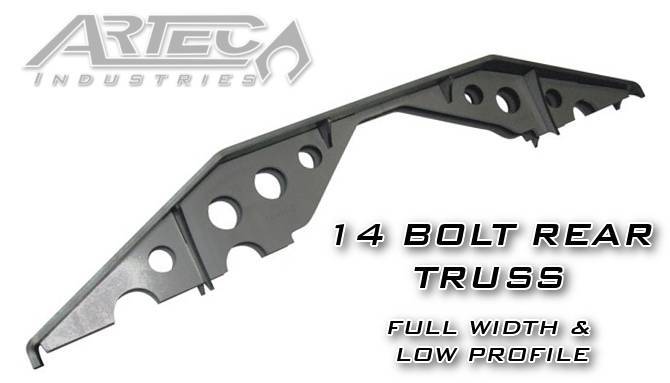

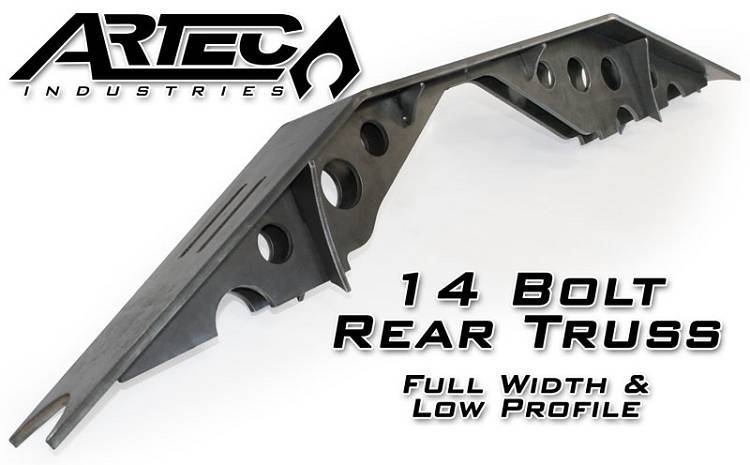

Artec 14 Bolt Rear Truss Single Rear Wheel SRW

• Sold as Each
• Axle Type: Single Rear Wheel SRW
• The DRW truss is just under 46 1/8 inch and the SRW truss is just under 51 1/4 inch total length.

Features include:

• 3/8 inch thick mild steel truss top and 1/4 inch mild steel ram mount and gussets. Precision CNC cut and bent For great fitment.
• Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle centerline.
• Truss spans entire length of axle For complete reinforcement of the axle tubes - not just For mounting links.
• Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
• Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
• This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.
• Artec Industries implies no guarantees or warranties and is not liable For improper installation.
• Some grinding and fitment may be required when installing this Kit.
• Every axle varies slightly and some fabrication may be required.
• GM Van axles have a differential that is offset differently than a typically truck and this truss will not have equal amounts of tube on each side.
• The truss will still work, it just won't be perfectly centered.
