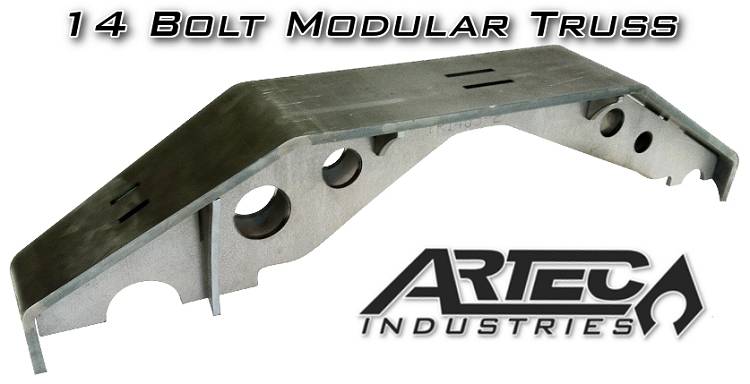

Artec 14 Bolt Modular Truss
TR1405
Artec 14 Bolt Modular Truss
Pricing:
$279.99
Description
Details:
- Sold as Each
- For the most bullet proof 4-link system we recommend adding the Artec Industries 14 bolt Pinion Guard with bridge .
- It is designed to keep your vulnerable pinion out of the rocks and Inch one piece.
- The ring and guard are CNC cut from 3/8 inch thick mild steel and the bridge is made from 1/4 inch steel and includes the necessary hardware to mount.
- Leaf spring option is For standard YJ width but is For spring over axle (SOA), not spring under (SUA).
- The Kit does not include u-bolts. Coil spring option is For stock REAR TJ coils (the wider ones) not TJ front coils.
- Other spring options will be available soon.
- Features include:
- 3/8 inch thick mild steel truss top and 1/4 inch mild steel gussets. Precision CNC cut and bent For great fitment.

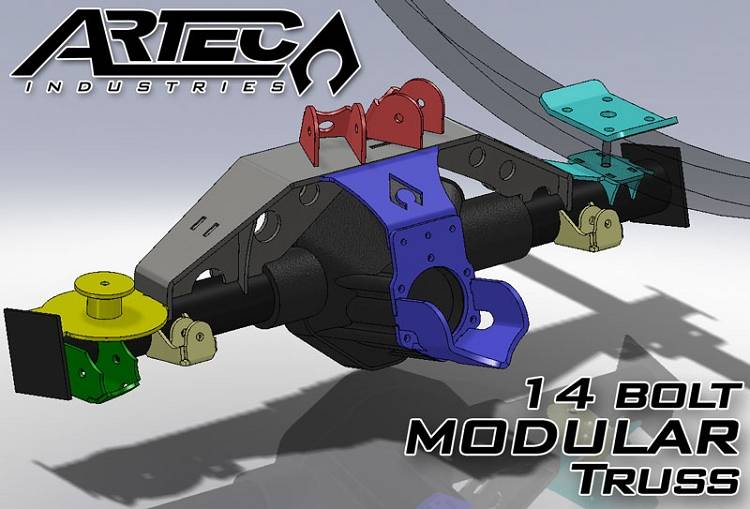

- Truss is low profile allowing link joints to be mounted with ideal geometry - about 8 inches from the axle centerline.
- This Modular truss is shorter to allow use with factory leaf spring perches or our add-on coil or leaf spring perches.
- This flexibility means that if you change from leaf spring to coil spring, you don't have to remove the whole truss, just the end brackets.
- Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
- Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
- This Kit requires general welding and fabrication skills.
- Welding should only be done by a competent welder.
- Artec Industries implies no guarantees or warranties and is not liable For improper installation.
- Some grinding and fitment may be required when installing this Kit.
- Every axle varies slightly and some fabrication may be required.
Application
Universal
Details
- TR1405
- TR1405
- 816791024503
- Artec Industries
- New
Categories
Shipping Information
- Item Requires Shipping
- 31.5 lbs.
- W8.0000” x H8.0000” x L32.0000”
