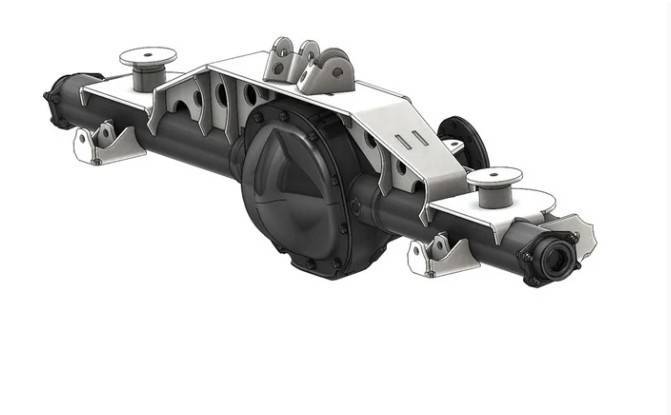

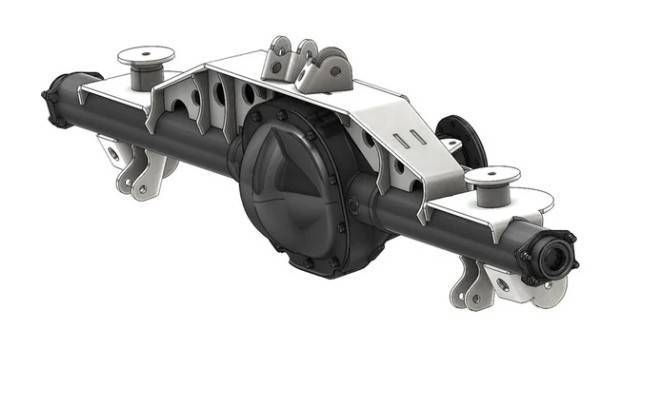

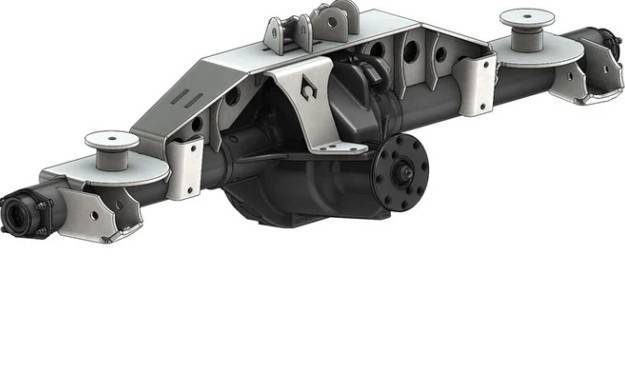

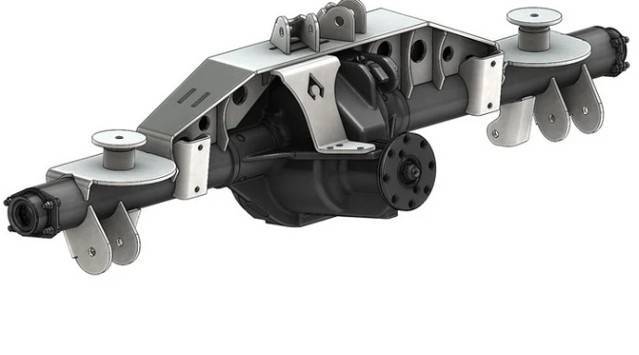

Artec Triangulated TJ 8.8 Swap Kit W/Truss 2.63 Inch OEM

TR8814
Artec Triangulated TJ 8.8 Swap Kit W/Truss 2.63 Inch OEM
Pricing: $509.99
Qty:
Free Shipping!

Description

Details:

  • Sold as Kit
  • Features include:
  • Upper Link Mounting Width: 2.63 inch
  • Shock/Lower Link Position: OEM
  • 1/4 inch thick mild steel truss and brackets For much higher strength than the factory bracket and other aftermarket brackets. Precision CNC cut and bent For great fitment.
  • Includes all the brackets necessary For a complete axle swap including upper and lower control arm mounts, shock mounts, anti-sway bar mounts, and coil spring mounts.
  • Eliminates the tracbar by using triangulated upper control arms. Not For use with OEM control arms.
  • New upper links and frame side brackets will be needed.
  • Save hours of installation time. Outer brackets just need to line up to truss, no guessing and measuring involved.
  • High-Clearance option provides flat LCA brackets and shock mounts to reduce rock damage.
  • Not For use with OEM control arms.
  • High-Clearance Shock mounts flip bolt orientation to perpendicular to axle tube providing more rotation without binding.
  • Upper shock mount relocation may be necessary.
  • Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
  • Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
  • Truss includes Pinion Bridge For added strength.
  • Bridge needs to be trimmed depending on pinion angle chosen.
  • TR8803 8.8 Modular Truss
  • BR1033 Rear TJ coil Perches and retainers (pair)
  • TJ8802 TJ 8.8 Swap Kit Sway Bar Brackets (Pair)
  • Option - Choose Truss Upper Link Mount - BR1042, BR1043, or BR1044
  • Option - Choose 1 of the following For LCA brackets and Shock mounts
  • This Kit requires general welding and fabrication skills.
  • Welding should only be done by a competent welder.
  • Artec Industries implies no guarantees or warranties and is not liable For improper installation.
  • Some grinding and fitment may be required when installing this Kit.
  • Every axle varies slightly and some fabrication may be required.
  • Will require brake line relocation to fit.

Details

  • TR8814
  • TR8814
  • 816791024831
  • Artec Industries
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W8.0000” x H8.0000” x L32.0000”
