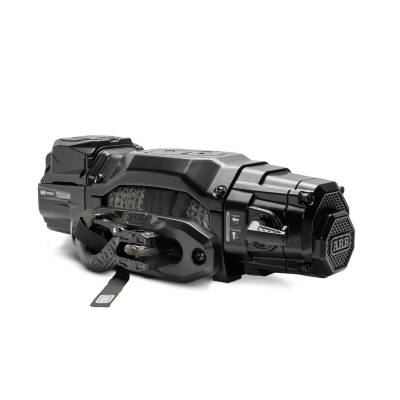

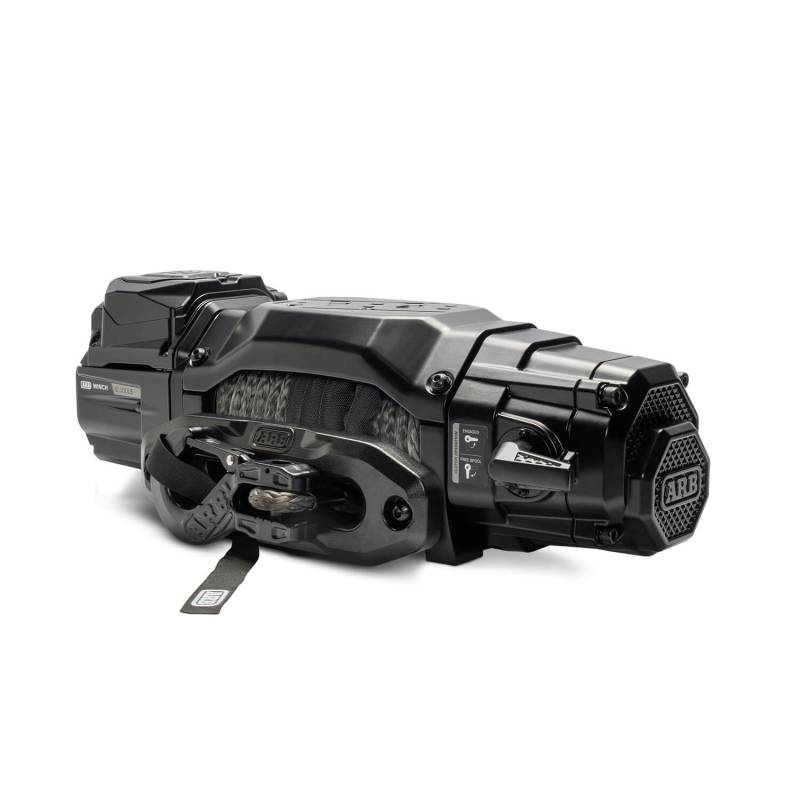

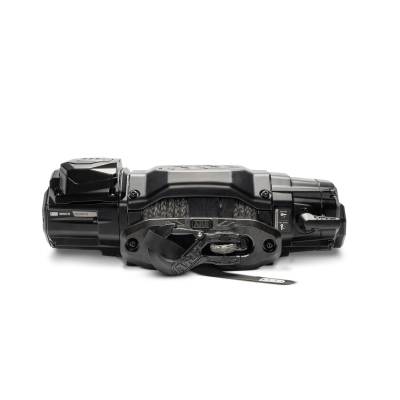

ARB Winch 12,000 Lb Synthetic Line

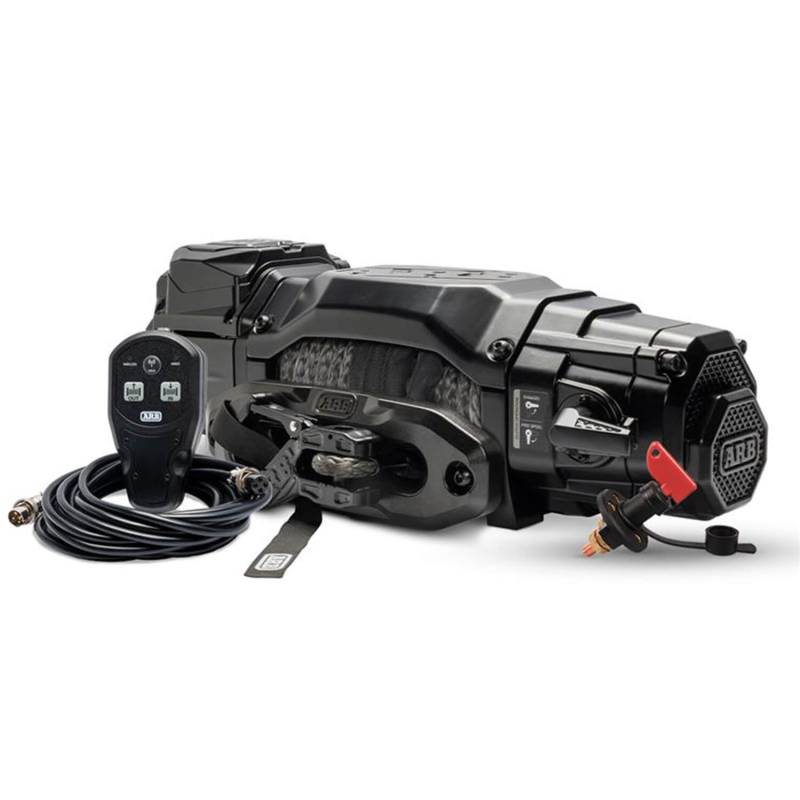

The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.

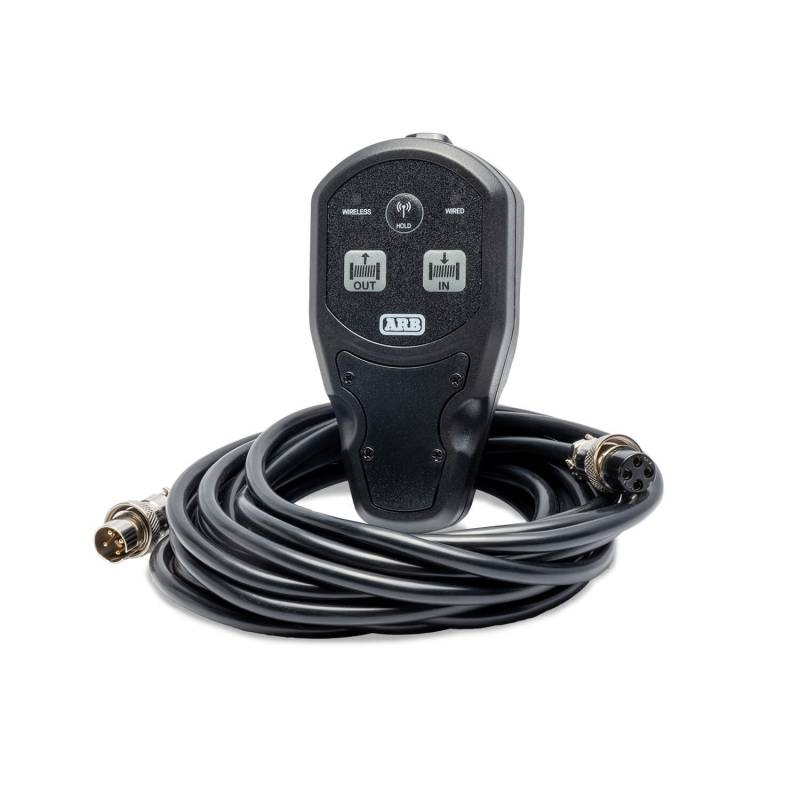

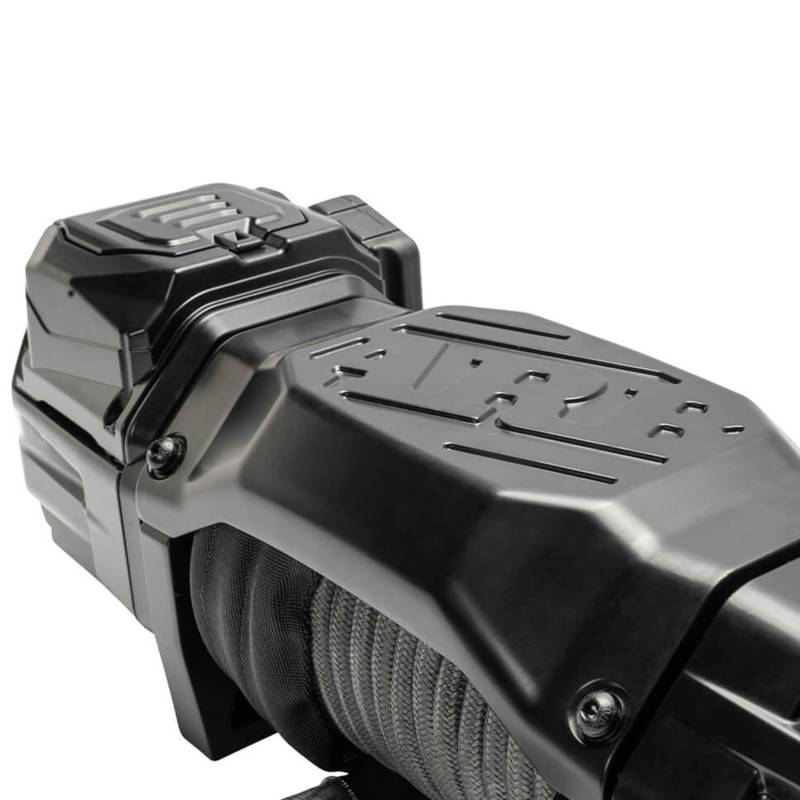

Built-In Control Box A custom direct-mount Albright contactor for improved efficiency and reduced power loss, delivering up to 8% more pulling power. Its compact, all-in-one design simplifies fitment and wiring, with prewired connections and flexible clutch clocking for fast, hassle-free installation. ZERO DRAG BRAKING SYSTEM The ARB Winch features a gearbox-mounted brake for 100% load holding and controlled powered unspooling under no load. Moving the brake outside the drum minimizes heat transfer to the rope. This design protects the synthetic line and improves overall durability and reliability. POWER ISOLATION SWITCH A 500A power isolation switch allows the winch to be safely disconnected when not in use, improving security and preventing accidental activation. DUAL CONNECTION REMOTE The dual-connection remote provides either 2.4GHz wireless control with a 40m range or a 5m wired connection. 4-STAGE GEARBOX Hardened steel gearsets ensures smooth and controlled operation under heavy load, optimizing torque transfer while maintaining efficient line speed. TUNED 12V MOTOR A purpose-built series wound motor drives the 4-stage gearbox to achieve fast line speeds with lower current draw. The design minimizes heat buildup and ensures consistent pulling power.
