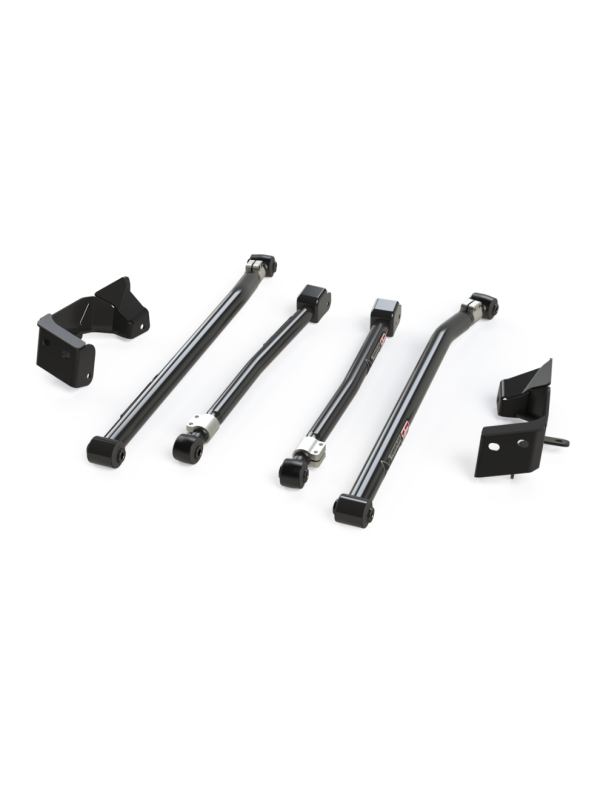

TeraFlex 07-18 Wrangler JK Alpine IR Front Long Arm & Brackets
Front
TeraFlex JK: Alpine IR Long Control Arms and Alpine Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts. Can be added to an existing suspension lift.
Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping.
These maintenance-free bushings improve on- and off-road ride quality and performance. On higher lifts TeraFlex JK: Alpine Long Arm Brackets (Included) reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.
CAD-engineered Alpine Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.
Fitment:Fits:
JK Wrangler (2-door)JK Wrangler Unlimited (4-door)Long Control Arm
Description
- JK: Alpine IR Long Control Arm Kit - Front Upper (# 1315570):
- Tube Diameter & Wall: 1-5/8 Inch X 0.157 Inch (42mm X 4mm)
- Factory Length = 18-3/4 Inch
- Min. Length = 27-3/8 Inch
- Max. Length = 28-7/8 Inch
- Axle End = 7/16 Inch (12mm) Bolt
- Frame End = 9/16 Inch (14mm) Bolt
- Thread = 1-1/4 Inch-12 UNF
- JK: Alpine IR Long Control Arm Kit - Front Lower (# 1315580):
- Tube Diameter & Wall = 2 Inch X 0.197 Inch (50mm X 5mm)
- Factory Length = 22-5/8 Inch
- Min. Length = 33-3/4 Inch
- Max. Length = 35-1/4 Inch
- Both Ends = 9/16 Inch (14mm) Bolt
- Thread = 1-1/4 Inch-12 UNF
Details
- 1957100
- 1957100
- 843885074090
- TeraFlex Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 75.0 lbs.
- W16.0000” x H11.0000” x L40.0000”
- Free Shipping!
