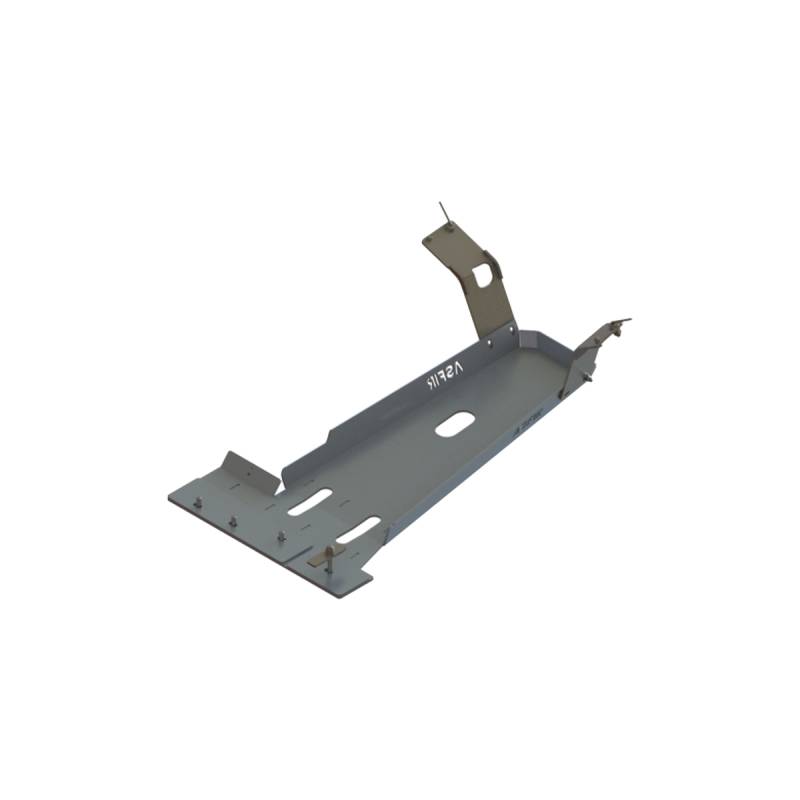

Asfir 4x4 Engine (Oil Pan) & Transmission Skid Plate - Jeep Wrangler JK 07-11 (3.8L)
547055
The Jeep Wrangler JK Engine & Gearbox Skid Plate is manufactured from high-quality laser-cut 1/4" aluminum, providing maximum strength with minimum added weight
Cleverly engineered to provide optimal protection to the engine & gearbox. Recommended using as a part of Asfir's Jeep Wrangler Jk complete underbody protection kit
Designed specifically to complement the Wrangler JK's structure, minimize clearance loss
Built with stiffening and reinforcing ribs to provide even greater strength where needed

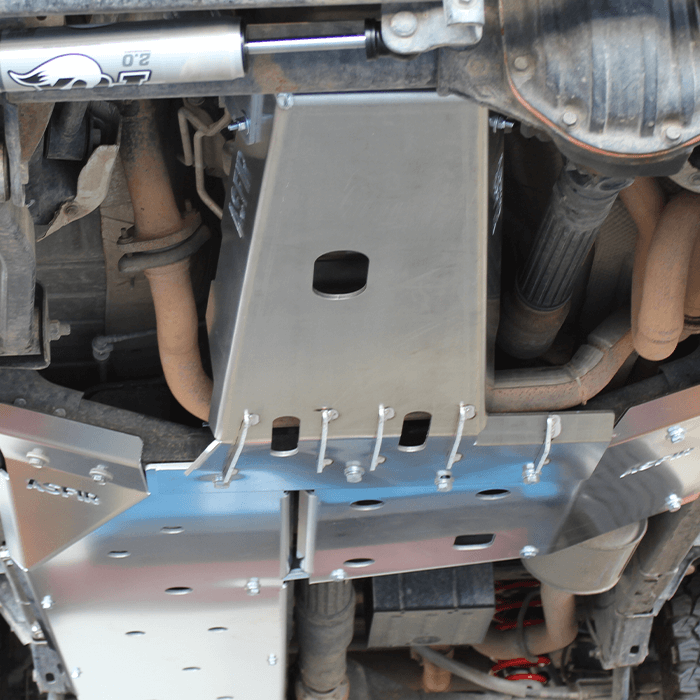

Directly bolted onto the vehicle's chassis and supported by zinc-coated steel brackets to ensure maximum durability.
Designed with air vents to reduce heat build-up alongside drain holes to assure easy removal of pebbles, dirt, or water that may get caught between the skid and the vehicle while offroading
No cutting or drilling is required. Completely bolt-on
The package includes all needed hardware
Weighs in at 29 lb
Proudly made in Israel
Cleverly engineered to provide optimal protection to the engine & gearbox. Recommended using as a part of Asfir's Jeep Wrangler Jk complete underbody protection kit
Designed specifically to complement the Wrangler JK's structure, minimize clearance loss
Built with stiffening and reinforcing ribs to provide even greater strength where needed
Directly bolted onto the vehicle's chassis and supported by zinc-coated steel brackets to ensure maximum durability.
Designed with air vents to reduce heat build-up alongside drain holes to assure easy removal of pebbles, dirt, or water that may get caught between the skid and the vehicle while offroading
No cutting or drilling is required. Completely bolt-on
The package includes all needed hardware
Weighs in at 29 lb
Proudly made in Israel
Pricing:
$546.00
Description
Fabricated from high-quality laser-cut 1/4" aluminum
Vehicle specific design
Optimal coverage with minimum clearance loss
Mounts directly to the chassis. Supported by zinc-coated steel brackets
Designed with air vents and drain holes where necessary
Easy Bolt-On installation. No drilling is required
Includes all needed assembly hardware
Total weight 29 lbs
Vehicle specific design
Optimal coverage with minimum clearance loss
Mounts directly to the chassis. Supported by zinc-coated steel brackets
Designed with air vents and drain holes where necessary
Easy Bolt-On installation. No drilling is required
Includes all needed assembly hardware
Total weight 29 lbs
Details
- 547055
- 547055
- Asfir 4x4
- New
Shipping Information
- Item Requires Shipping
- 29.0 lbs.
- W24.0000” x H5.0000” x L42.0000”
