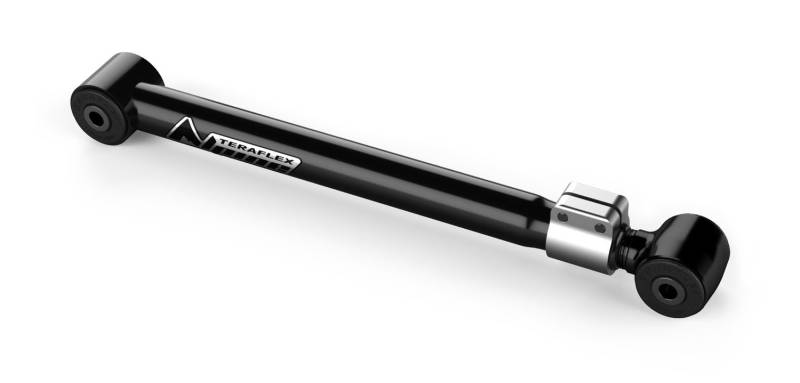

TeraFlex JK: Alpine Short Control Arms – Rear Lower Left (2-4” Lift)

TeraFlex JK: Alpine Short Control Arms provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 2-4” lifts. Bolts to the factory control arm mounting brackets. Can be added to any existing suspension lift.

High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.





Fits:


• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)



• 2-4” Lift





Short Control Arm Specs:


• Tube Diameter & Wall = 42mm x 4mm

• Factory Length = 19-3/4”

• Min. Length = 19-13/16”

• Max. Length = 21-1/16”

• Both Ends = 9/16” (14mm) Bolt

• Both Bushings = # 611011




Includes:


• Alpine Short Control Arm - Left Rear Lower Adjustable





Features & Benefits:


JK Alpine Short Control Arms:


• Adjustable Alpine Short Control Arms balance front caster angle and pinion angle as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-4” lift kits

• Alpine Control Short Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength

• Bolts to the factory control arm mounting brackets

• Install and drive simple bolt-on installation – no welding required



JK Alpine Control Arms (all):


• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase

• Full range of movement will not restrict articulation or flex off-road

• High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality.

• Zero maintenance forged threaded joints for smooth quiet flex

• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance

• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment

• TeraFlex Lifetime Warranty against defects





Note(s):


• Alignment required.







Install Time: 1.5 Hours







Alpine Short Control Arm Configurations:


• 8-Arm (# 1415610)



• Front Upper (# 1415520) – pair

• Front Upper Left (# 1141521)

• Front Upper Right (# 1141531)

• Replacement Bushings (Both Ends: # 611014)



• Front Lower (# 1415500) – pair

• Front Lower Left (# 1141501)

• Front Lower Right (# 1141511)

• Replacement Bushing (Both Ends: # 611011)



• Rear Upper (# 1415560) – pair

• Rear Upper Left (# 1141561)

• Rear Upper Right (# 1141571)

• Replacement Bushing (Both Ends: # 611012)



• Rear Lower (# 1415540) – pair

• Rear Lower Left (# 1141541)

• Rear Lower Right (# 1141551)

• Replacement Bushing (Both Ends: # 611011)
