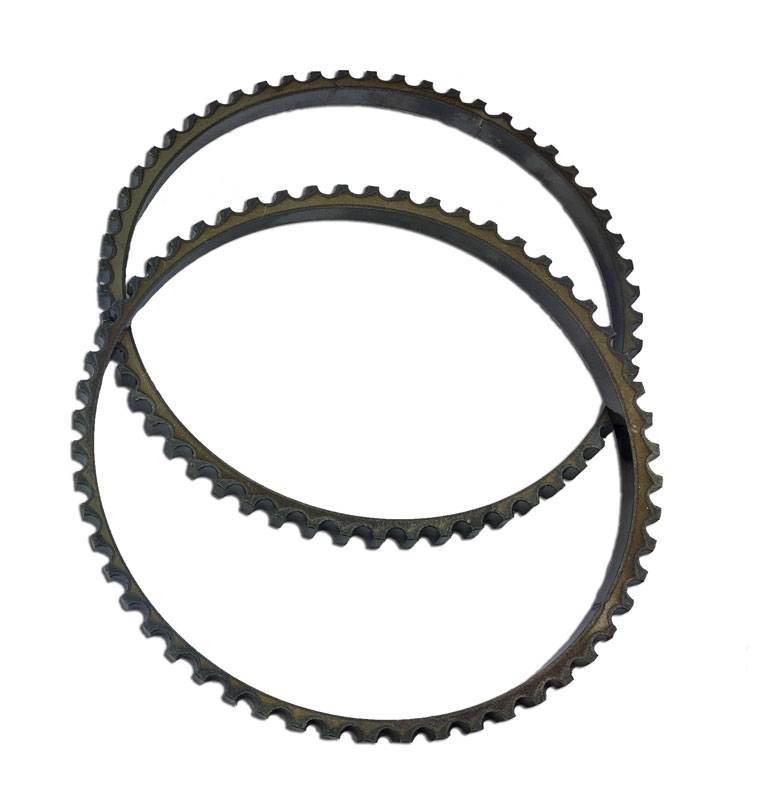

Artec JK 1 Ton 14 Bolt 52 Tooth Tone Ring

BB1401
Artec JK 1 Ton 14 Bolt 52 Tooth Tone Ring
Was: $54.99
Sale: $49.49
Save: 10%
Save: $5.50
Qty:

Description

Details:

  • Zinc plated For corrosion resistance and improved sensor feedback
  • This Kit Is Intended For Use With A Newer Style 14 Bolt Axle With Tibbing On The Casting And Has A WMS-WMS Measurement Of 68 Inch or Greater.
  • This axle is referred to as an AAM 14 bolt 10.5 inch ring gear and is found Inch 99-06 GM 2500 and 3500 SRW trucks.
  • 14 Bolt Axle with Factory Drum Brakes
  • BB1420: Kit BB1410 with 52 Tooth Tone rings
  • BB1421: Kit BB1410 with 60 Tooth Tone rings
  • This Kit has 2 mounting positions per side For Factory JK Rear ABS Sensors. One from each side will connect to the rear plugs and the other 2 need to be spliced into the front plugs. If using any axle than the 2005 plus Superduty, this is the best option.
  • If using 2005 - 2013 Superduty Front Dana 60 Axle only 2 Rear Sensors can be installed and the front will use the Dodge ABS Sensors and the 60 Tooth Tone Rings
  • Dodge ABS Sensors – Chrysler P/N 5179958AB, Dorman P/N 970-052, or Airtec P/N 5S8491
  • Individual parts that are Inch this Kit and available separately:
  • BB1410: Brake brackets and Dust shield
  • BB1401: 52 Tooth Tone ring 14 bolt
  • BB1403: 60 Tooth Tone ring 14 bolt
  • Additional items required and not included with Kit:
  • Please note this converts to a Top Hat Style Rotor
  • Calipers (Choose one of the items listed below)
  • Raybestos RC4072 and RC4071
  • Napa N4674 and N4673
  • Napa N4597 and N4596
  • Wheel Studs
  • Dorman P/N 610-333 – 16 of these are needed(10.9/333 14 x 1.5mm 90.5 mm long)
  • Rotors (Choose one of the items listed below with a Quantity of 2)
  • Network P/N P56828
  • Raybestos P/N 55055
  • Bendix P/N PRT5260
  • 58828
  • 14 Bolt Rear Axle with Factory Disc Brakes
  • BB1430: BB1411 ABS Sensor Mount and 52 Tooth Tone rings
  • BB1431: BB1411 ABS Sensor Mount and 60 Tooth Tone rings
