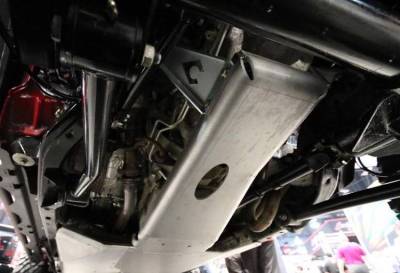

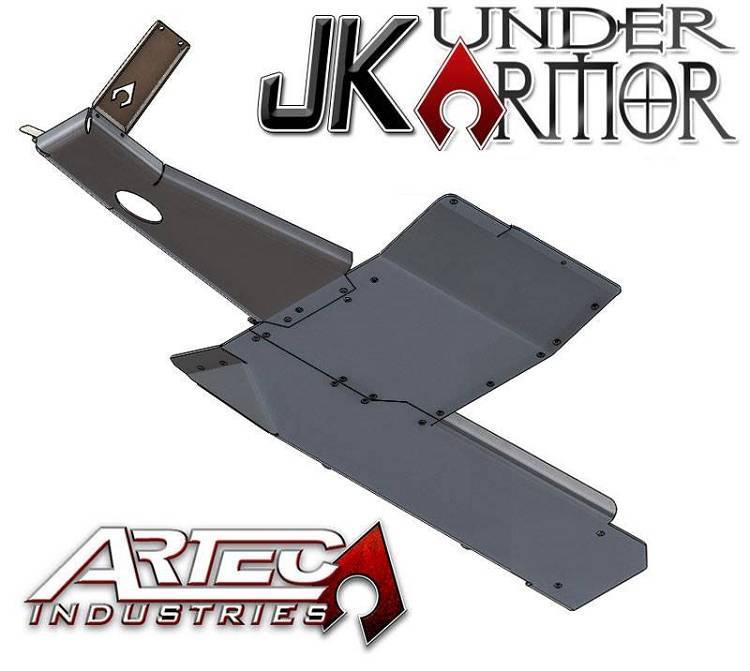

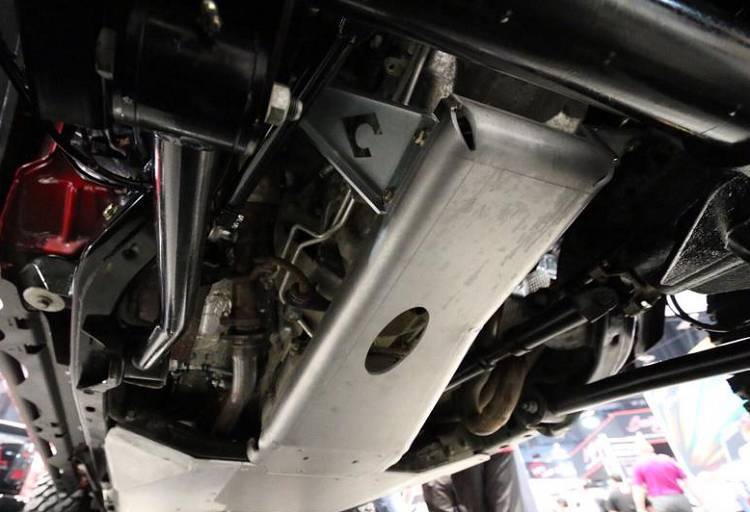

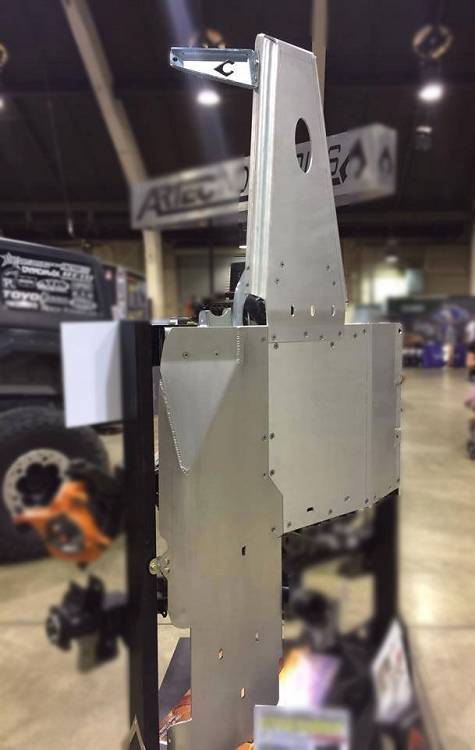

Artec JK Under Armor 2 Door Bellypan Kit 12-16 Wrangler JK

SKU: JK1020

Pricing: $2,299.99

Description

Features:

Sold as Each
Modular design - add the Oil Pan Skid or Gas Tank Skid when you want no need to buy it all at once
1/4 inch 6061 Aluminum For skid plates, 3/16 inch zinc plated steel For bracketry
Designed from factory CAD files For great and precise fit.
CNC laser cut and CNC formed using custom rolled dies For high strength and a unique look.
All bolts under skid plate are countersunk For absolutely smooth bottom
All nuts are pressed into steel brackets For Easy, one tool removal
Modular design lets you take off only one section For vehicle servicing
Compatible with additional skids that protect Oil Pan, Transmission Pan, Gas Tank, Front Exhaust
Works best with Artec JK Heavy Duty Cross members
Loop delete needed if using long arm HD cross member with link mounts.
A small amount of trimming will be required on the factory Gas Tank Skid plate.
Not compatible with exhaust spacer Kits such as Teraflex.
May not work with aftermarket Evap Canister Skid Plates, relocation is suggested.
May not be compatible or may need to be modified to work with Aftermarket Suspensions that use a proprietary cross member.
Proven Design-our complete bellypan skid plates systems have been abused on the market For several years now and are finally available For purchase individually
Using the factory cross member, some holes must use factory hardware which is not countersunk. For a completely smooth bottom, use Artec HD Cross members.
