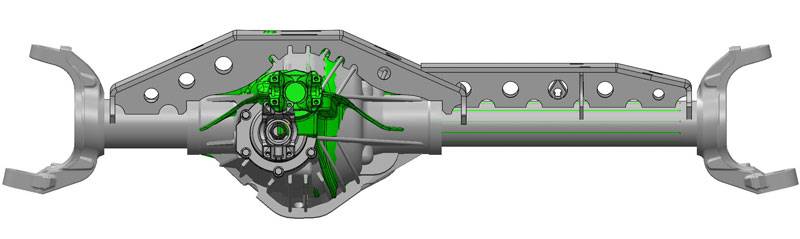

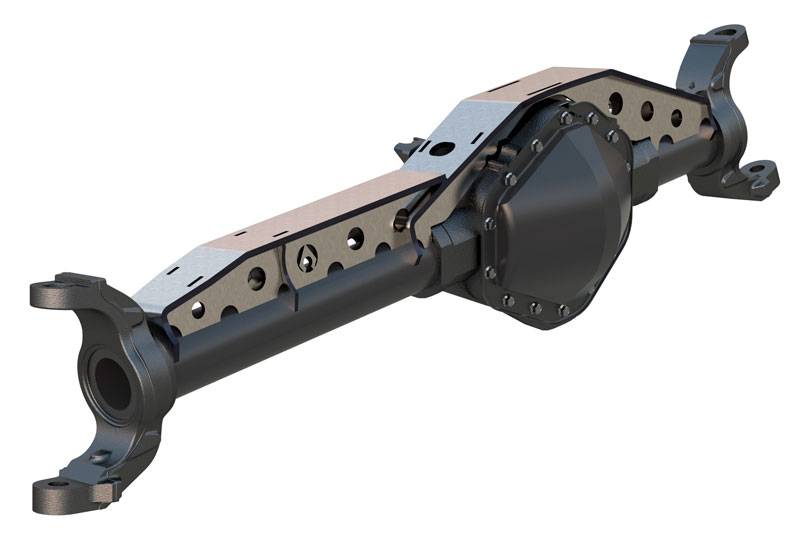

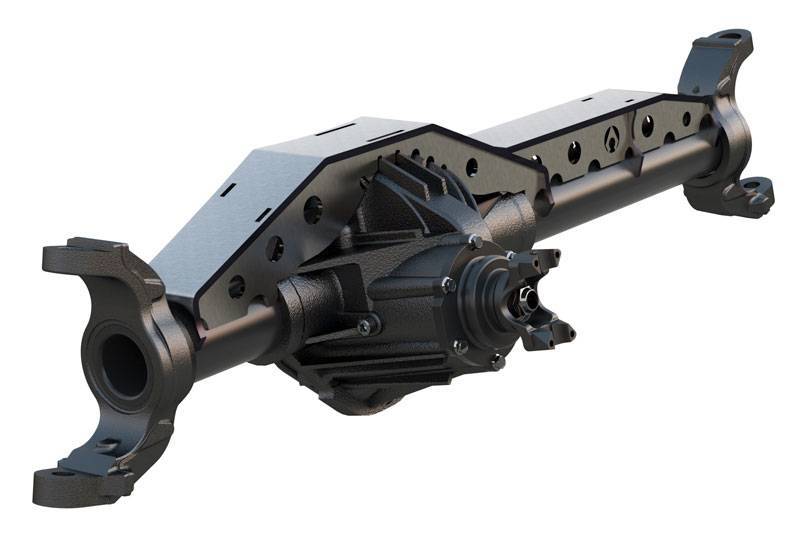

Artec 14 Bolt Front Truss
TR1408
Artec 14 Bolt Front Truss
Pricing:
$369.99
Description
Details:
- Sold as Each
- This truss allows For a selection of pinion angles from 7 to 20 degrees.
- Any more or less and some trimming may be required.
- This truss fits most 14 bolt axles from Chevy/GMC trucks.
- Please Note That A 14 Bolt Front Axle Is Completely Custom Not Oem.
- Modifications May Be Necessary Depending On How You'Ve Built The Axle.
- We Recommend Getting The Truss Before Building The Axle So You Can Build Them Together.
- This Kit uses a Modular Truss End which is a generic part designed to be trimmed to fit any short truss.
- Trimming to fit the contour of the 14 bolt short truss will be necessary.
- This truss is very form fitting to the contours of the casting.
- Due to variances Inch casting of this axle over the years, some trimming may be necessary on the truss and non-essential parts of the casting.
- Features include:
- Modular Truss Ends give option For a driver or passenger side differential
- Allows For custom width axles because Modular Truss End is used and can be easily trimmed to any length
- 3/8 inch thick mild steel truss top and 1/4 inch mild steel ram mount and gussets.
- Precision CNC cut and bent For great fitment.
- Truss is low profile allowing link joints to be mounted with ideal geometry using the proper brackets - from 7 to 10 inches from the axle centerline.
- Truss is reinforced using interlocked 1/4 thick gussets For maximum strength and easy assembly.
- Overall low profile design means your axle is stronger, sleeker, easier to fit into any vehicle, and less likely to interfere with vehicle components.
- Easily Add a Pinon Guard With Bridge by clicking the option above. (pinion guard bridge is trim to fit)
- This Kit requires general welding and fabrication skills. Welding should only be done by a competent welder.
- Artec Industries implies no guarantees or warranties and is not liable For improper installation.
- Some grinding and fitment may be required when installing this item.
- Every axle varies slightly and some fabrication may be required.
Application
Universal
Details
- TR1408
- TR1408
- 816791027238
- Artec Industries
- New
Categories
Shipping Information
- Item Requires Shipping
- 44.0 lbs.
- W8.0000” x H8.0000” x L32.0000”
- Free Shipping!
